Log Moulder images may show options such as cant rest, cutterhead extension, knife profile packages, or earlier models.

21" (53 cm)

Log Diameter

13.5 HP

Max Horsepower

Whats Included

13½ hp (420 cc) Briggs & Stratton recoil start gas engine

8" x 4-13/16" (20 cm x 12 cm) Cutter Head

Cutter Head Height Crank Handle

Push Handle Throttle

Drum Brake System

Depth of Cut Scale

Track Sweepers

Adjustable Carriage Wheels

Powder-Coated Chassis

1 set of straight knives (LX26-KN-P-0035)

Log Moulder images may show options such as cant rest, cutterhead extension, knife profile packages, or earlier models.

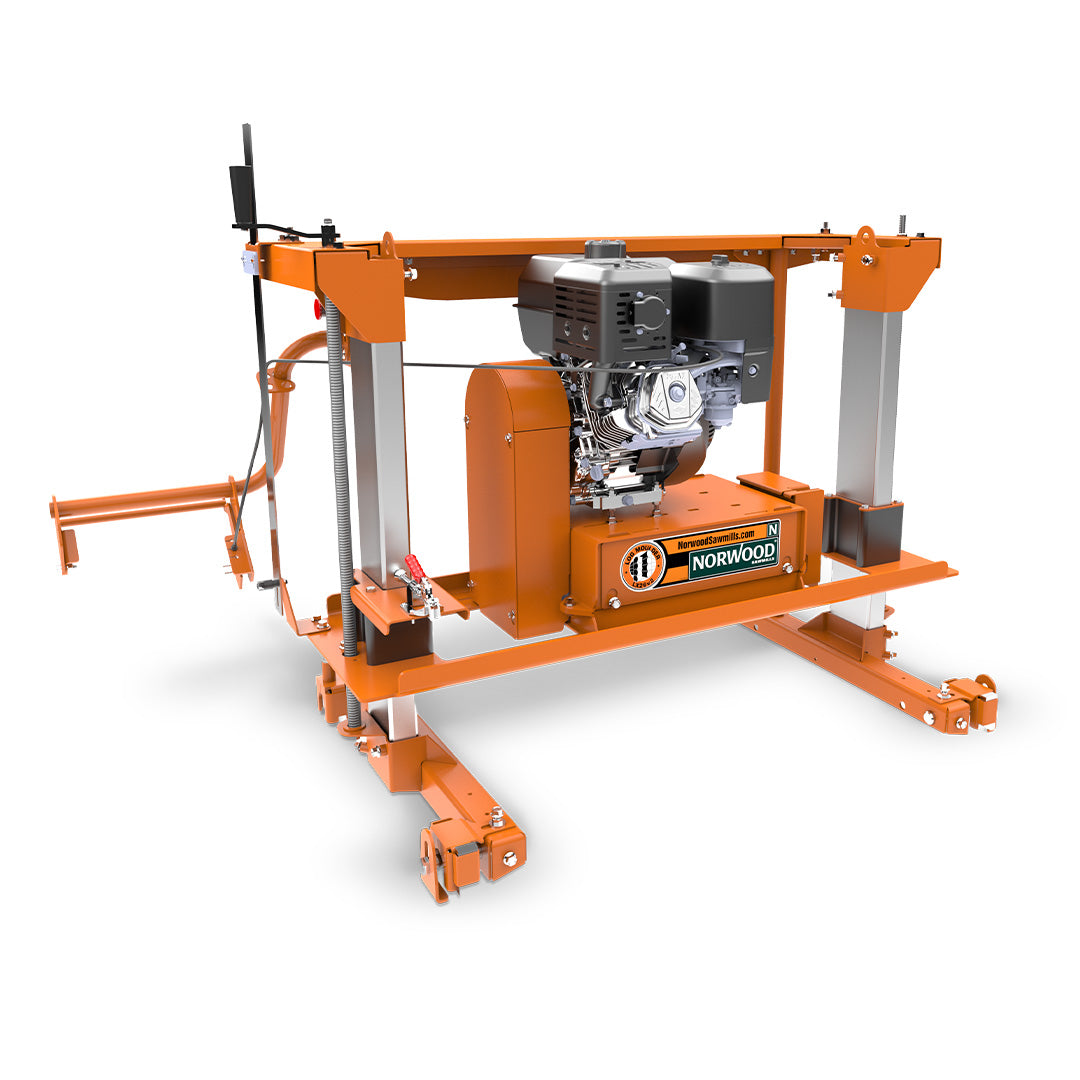

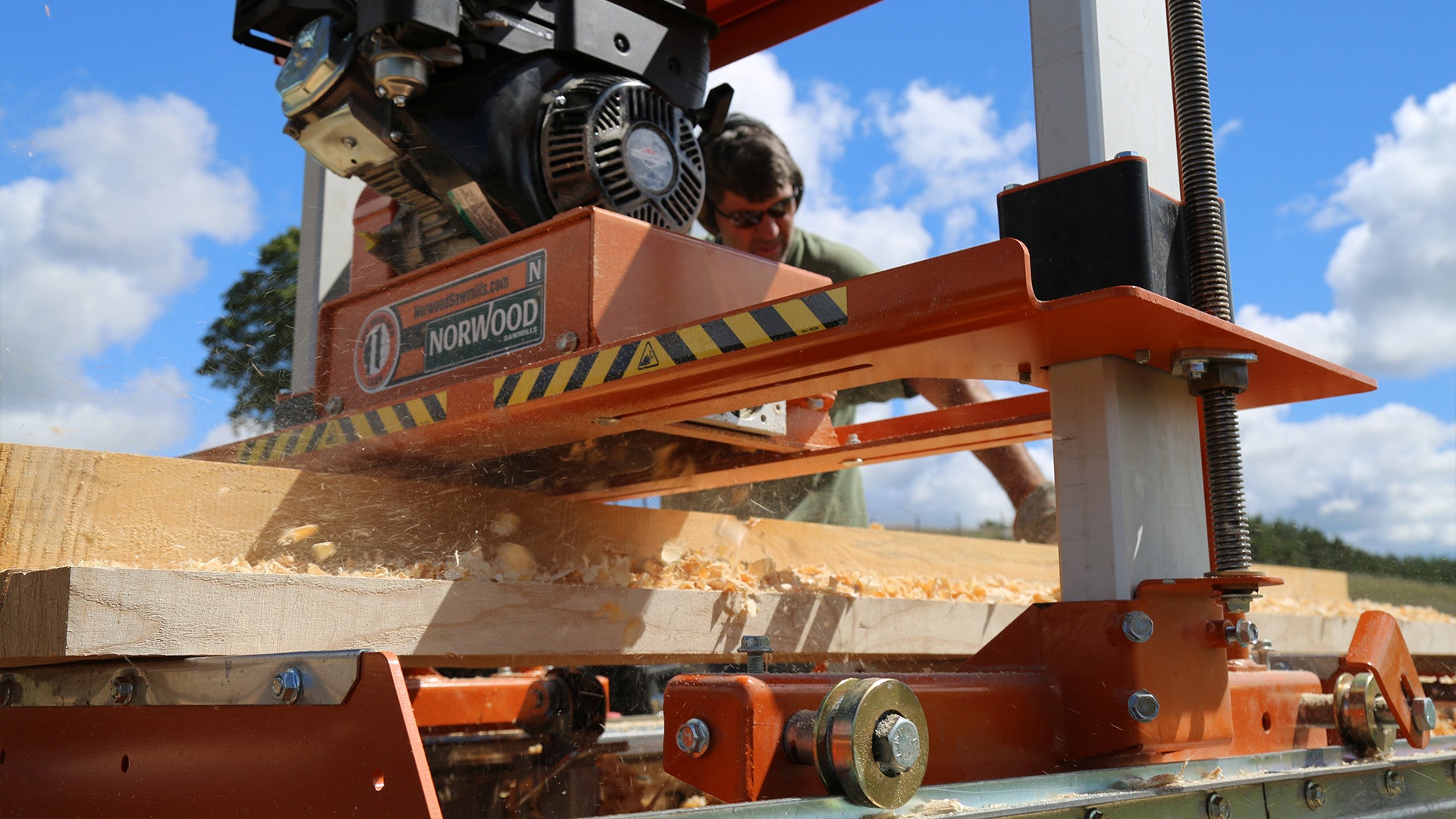

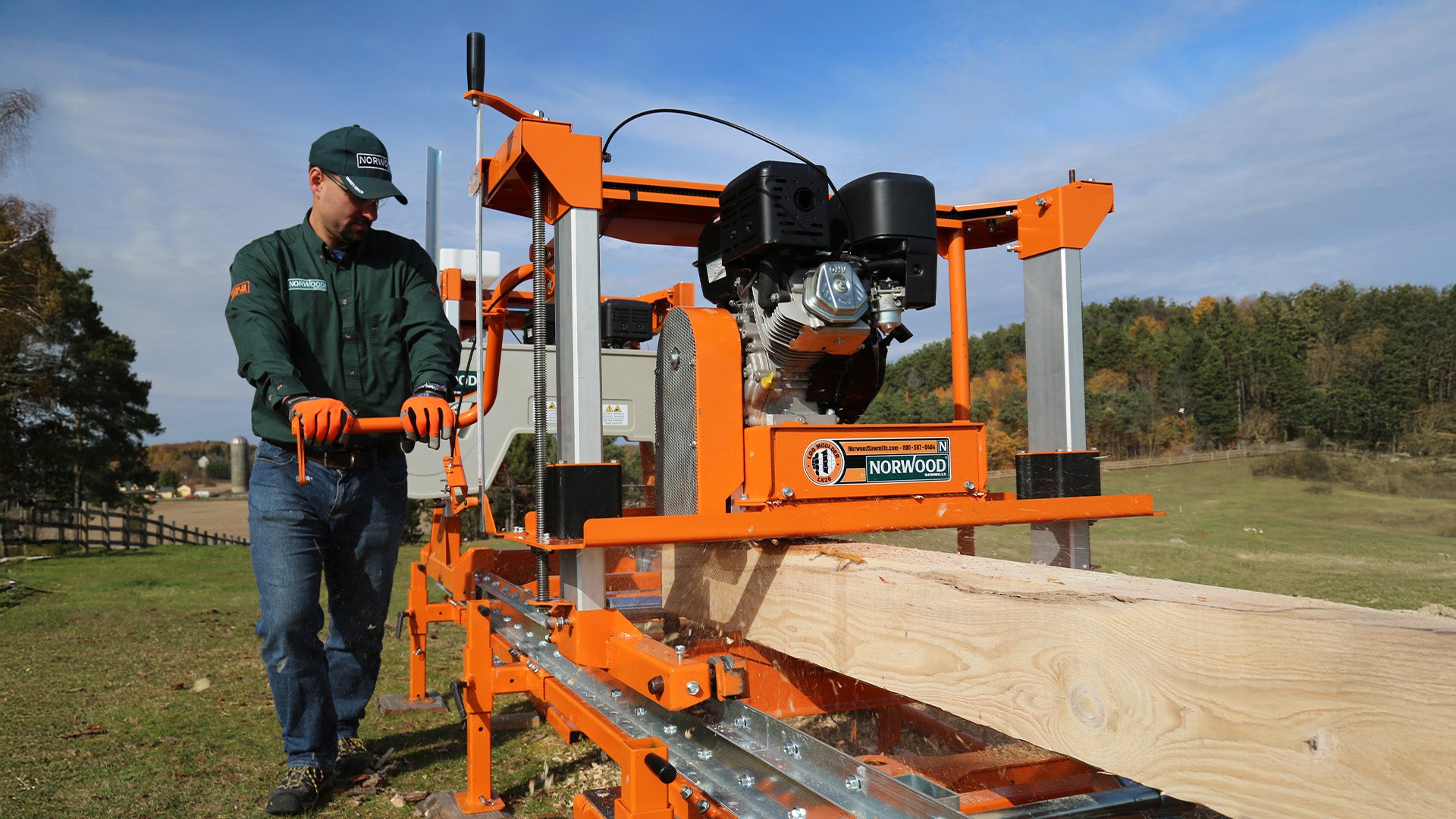

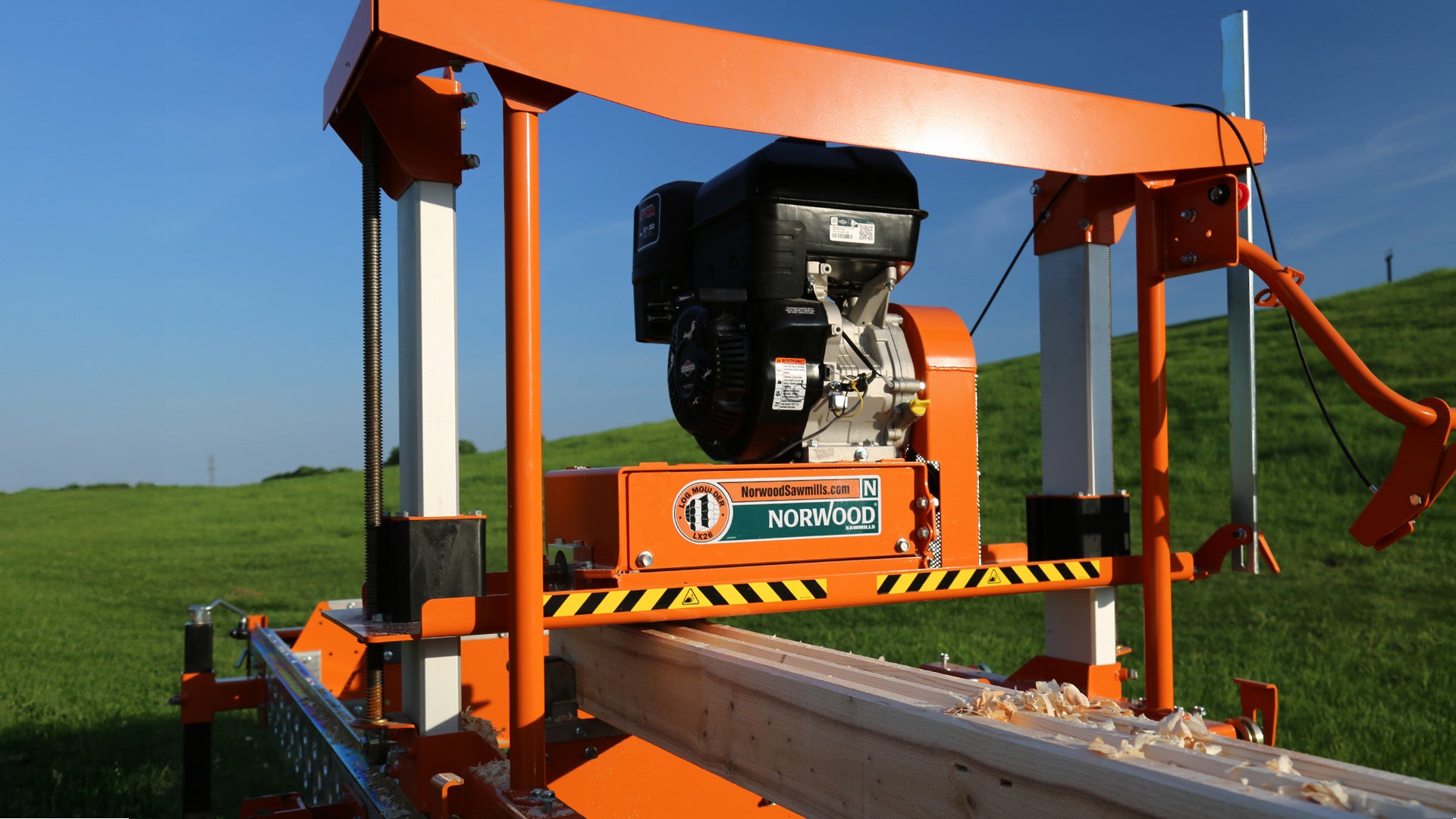

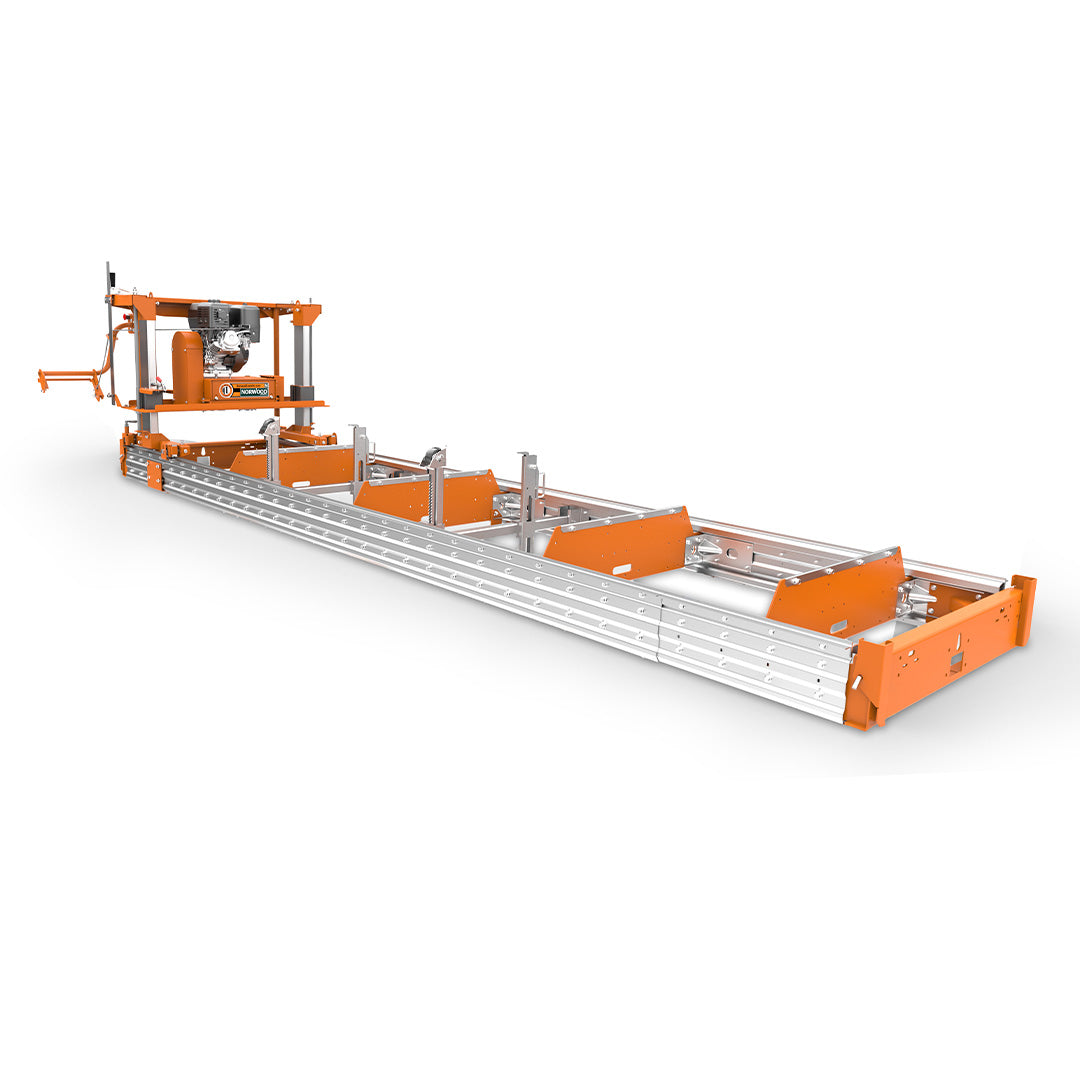

Log Moulder LX26

SKU: LX26V2-0013G

$6,549.00 USD

Shipping calculated at checkout.

The Log Moulder LX26 adds true finishing capability to your sawmilling operation. It operates directly on the same log deck as your LumberMate or HD series mill, using the same track as the saw carriage so you can plane and shape boards and beams immediately after squaring the cant. Finish your timber without moving it to another machine, or for greater productivity, add a dedicated track system for the LX26. Select from several shaped knife package options to precision-mould log profiles for log home construction.

21" (53 cm)

Log Diameter

13.5 HP

Max Horsepower

Engine: 13½hp (420cc) Briggs & Stratton recoil-start engine - no log deck

Briggs & Stratton recoil-start engine - no log deck

Ships in 4 - 6 weeks

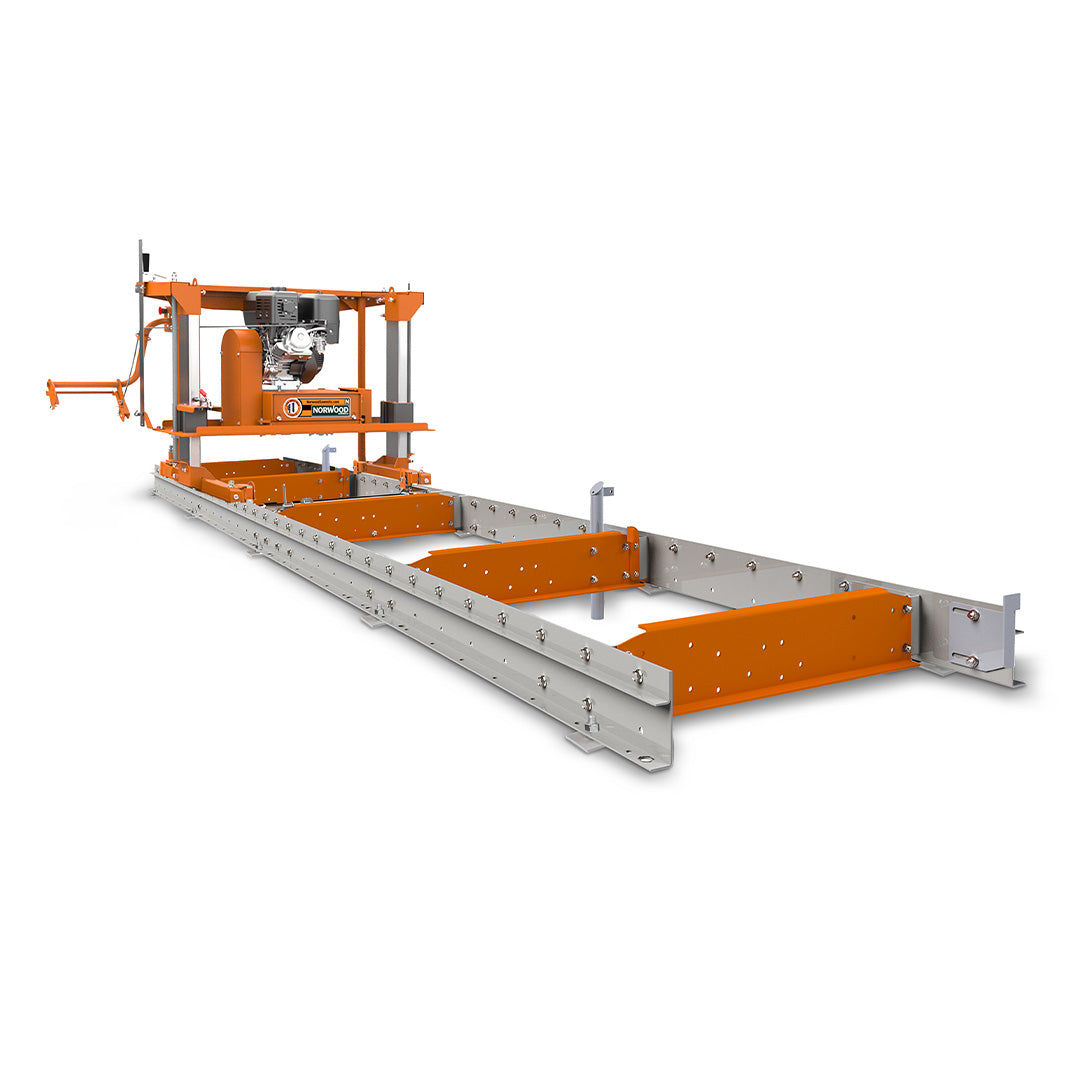

Briggs & Stratton recoil-start engine + 16ft (4.8m) medium-duty log deck

Ships in 4-5 weeks

Briggs & Stratton recoil-start engine + 16ft (4.8m) heavy-duty log deck

Ships in 1-2 weeks

$499 shipping on your entire sawmill order! Excludes remote areas. see details
30-day money-back guarantee
2-year warranty on band sawmills

Whats Included

13½ hp (420 cc) Briggs & Stratton recoil start gas engine

8" x 4-13/16" (20 cm x 12 cm) Cutter Head

Cutter Head Height Crank Handle

Push Handle Throttle

Drum Brake System

Depth of Cut Scale

Track Sweepers

Adjustable Carriage Wheels

Powder-Coated Chassis

1 set of straight knives (LX26-KN-P-0035)

Log Moulder LX26

$6,549.00 USD

Log Moulder LX26 — Feature Highlights

The Log Moulder LX26 combines extreme capacity with Norwood’s most advanced innovations to deliver serious performance, cut after cut.

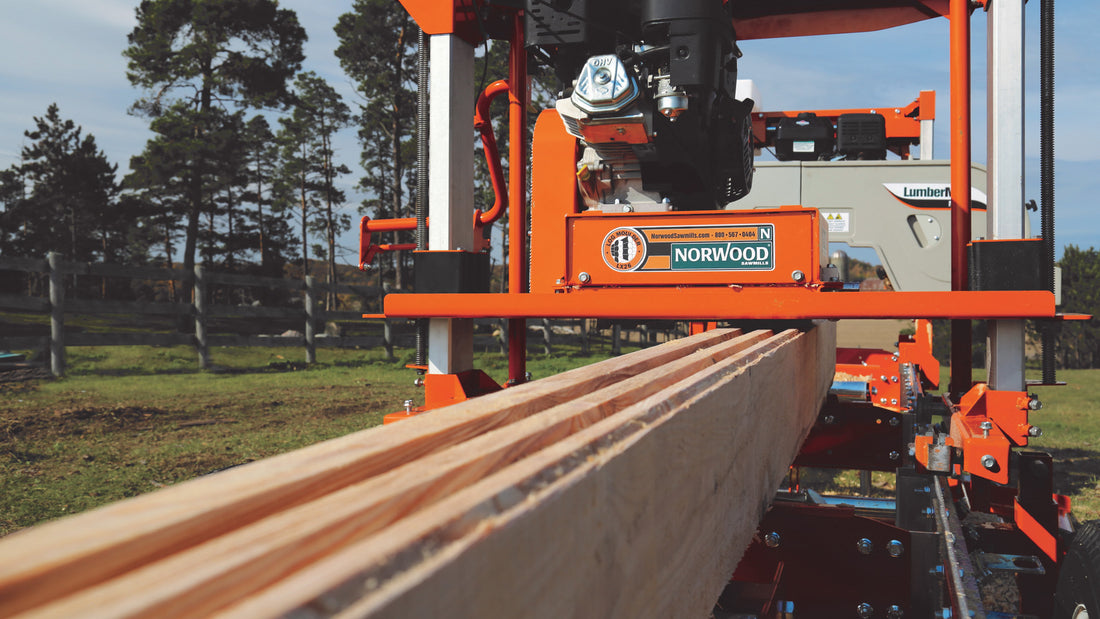

Use the same track as your sawmill

Your saw carriage and the Log Moulder LX26 work off the same track. Square the cant, then run the LX26 over the same rails to plane to final size. Fewer setups, less handling, faster turnaround.

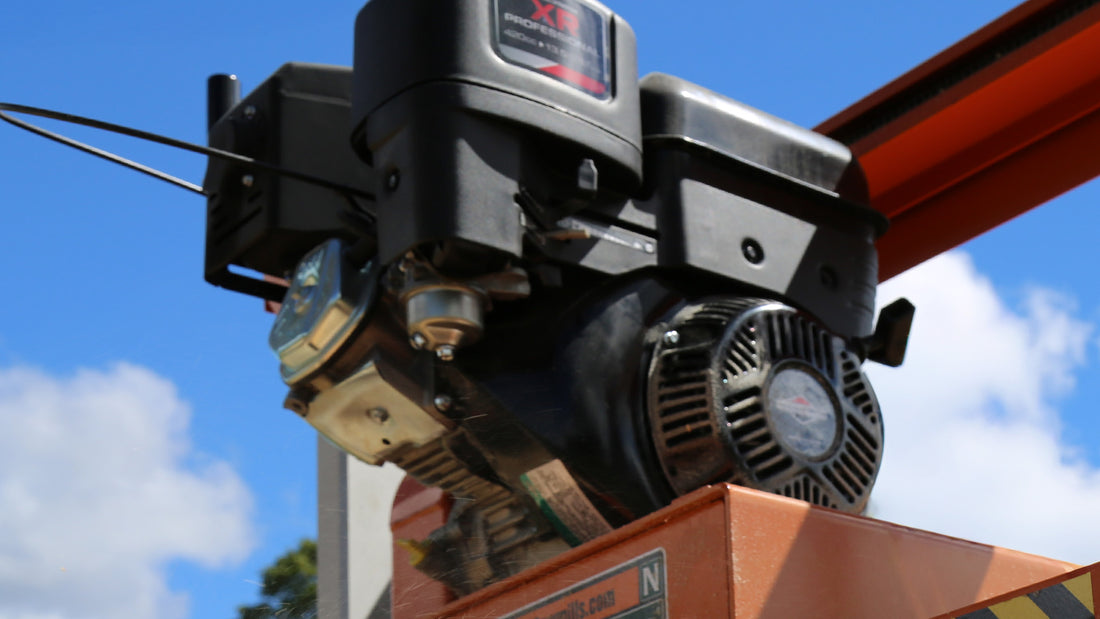

Reliable Briggs & Stratton power plant

A proven 13.5 hp Briggs gas engine drives the cutterhead through a centrifugal clutch, delivering steady power and smooth engagement under load.

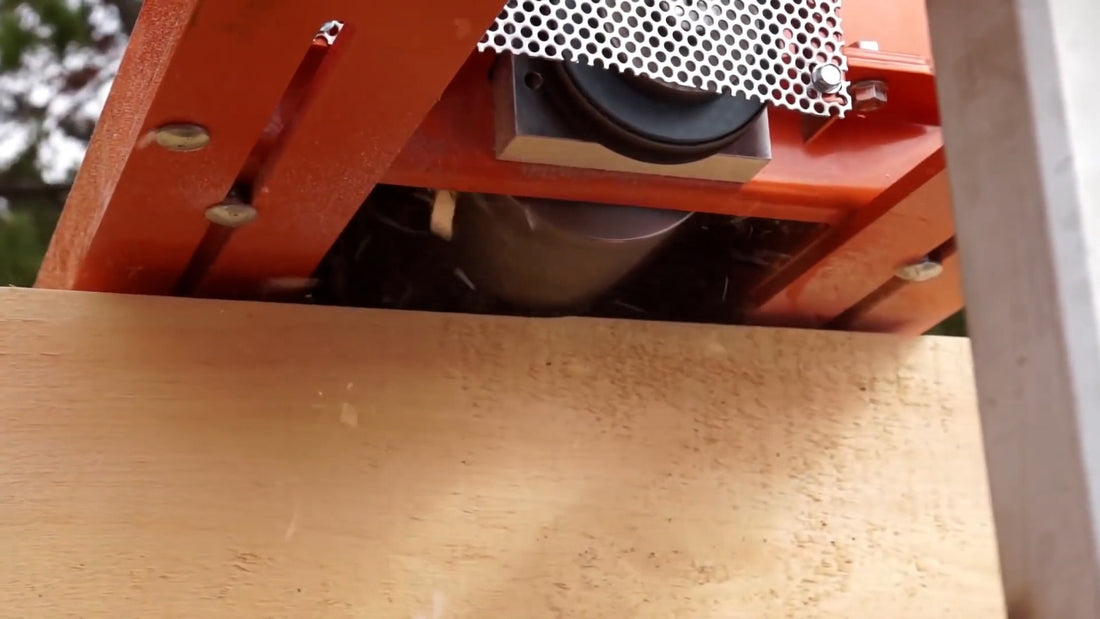

Heavy-duty cutterhead drums

Standard equipment includes an 8 in x 4-13/16 in (20 cm x 12 cm) cutterhead with two 8 in (20 cm) corrugated HSS planing knives. Add the optional second 8 in cutterhead (LX26-CH8) to surface up to 16 in (41 cm) in a single pass.

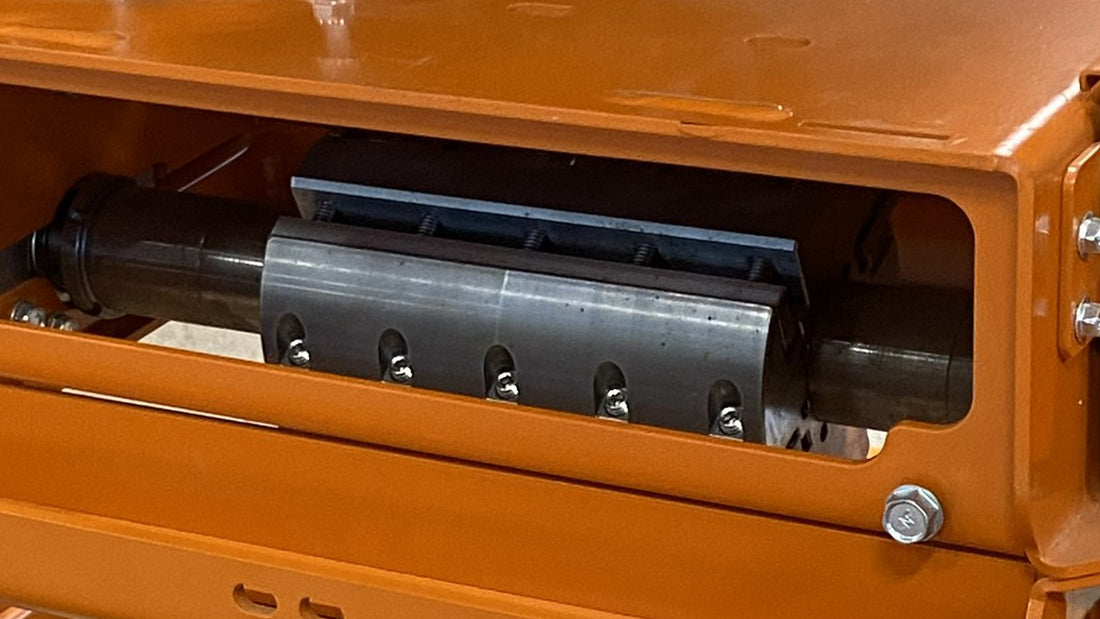

Fast knife change and adjustment

Access knives through the service hatch. With a 6 mm Allen key and the locking/adjusting screws, you can swap and set knives quickly. The setting block keeps the cutting edge positioned accurately.

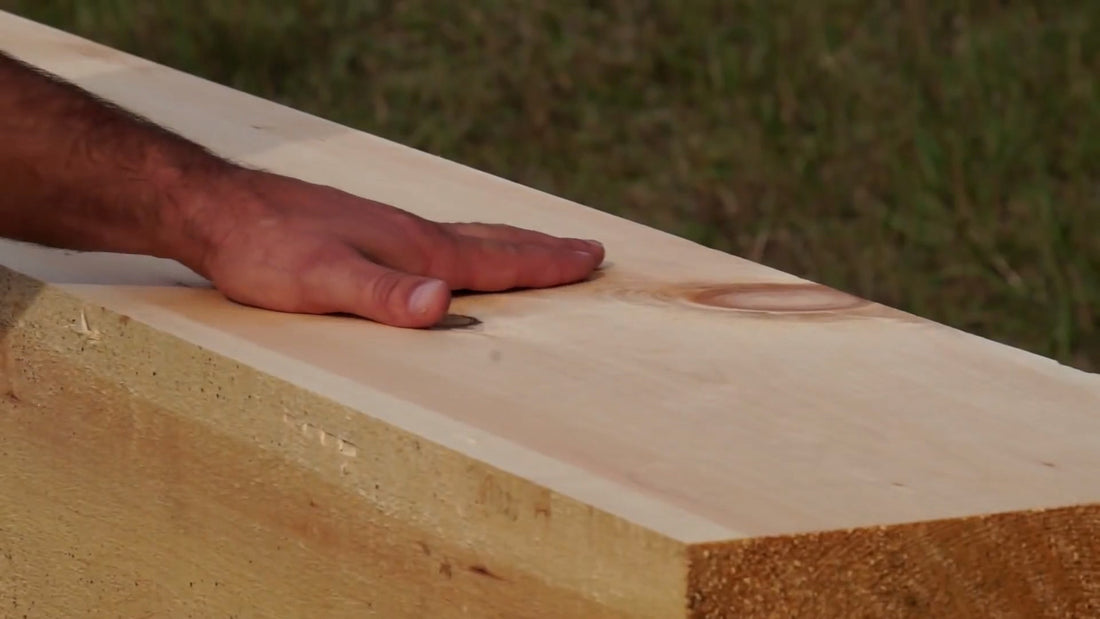

Get a smooth finish on wide beams and planks

Finish timbers up to 27 in W x 21 in H (69 cm x 53 cm). The laterally adjusting cutterhead slides up to 11 in (28 cm) for wide surfacing, up to 19 in (48 cm) with one drum, or up to 27 in (69 cm) with a second optional drum.

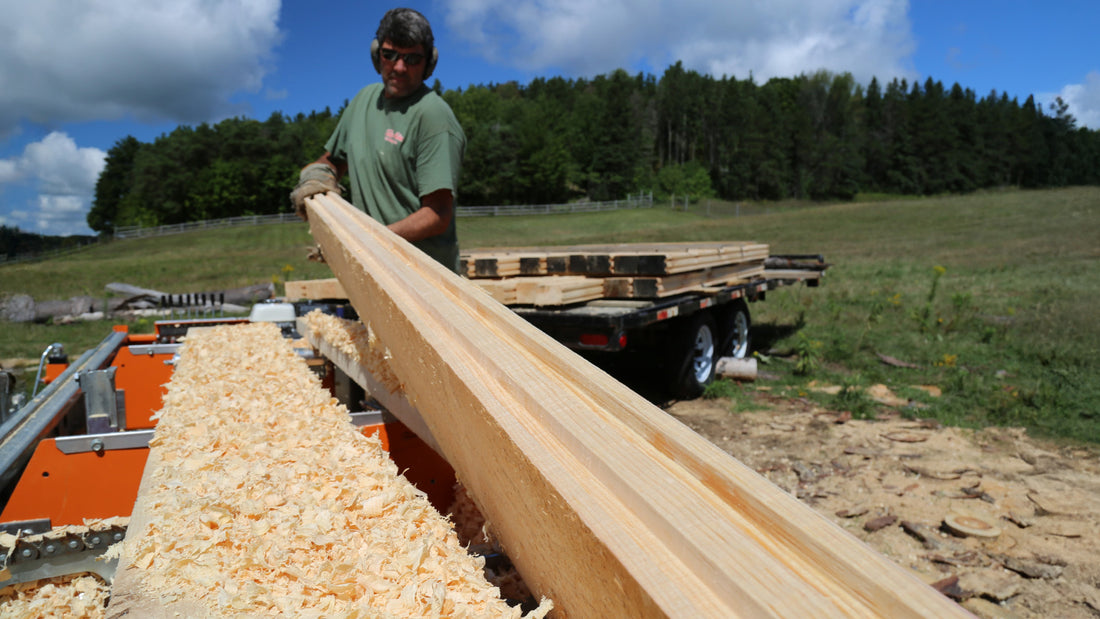

Built for long stock

Need to dress over-length timbers? Add log deck and track extensions to match your sawmill bed length and keep production moving.

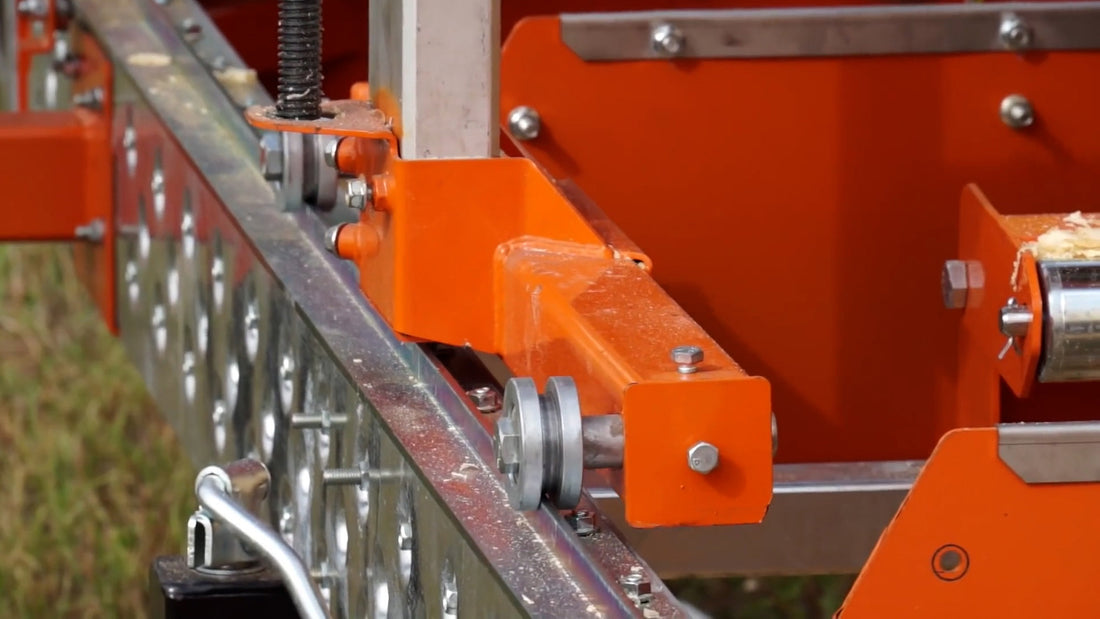

Adjustable carriage wheels

The adjustable carriage wheels with sealed 5/8" bearings accommodate rails 31" to 33 ½" (79 cm – 85 cm) apart, and 40 ½ to 43" (103 cm – 110 cm) apart.

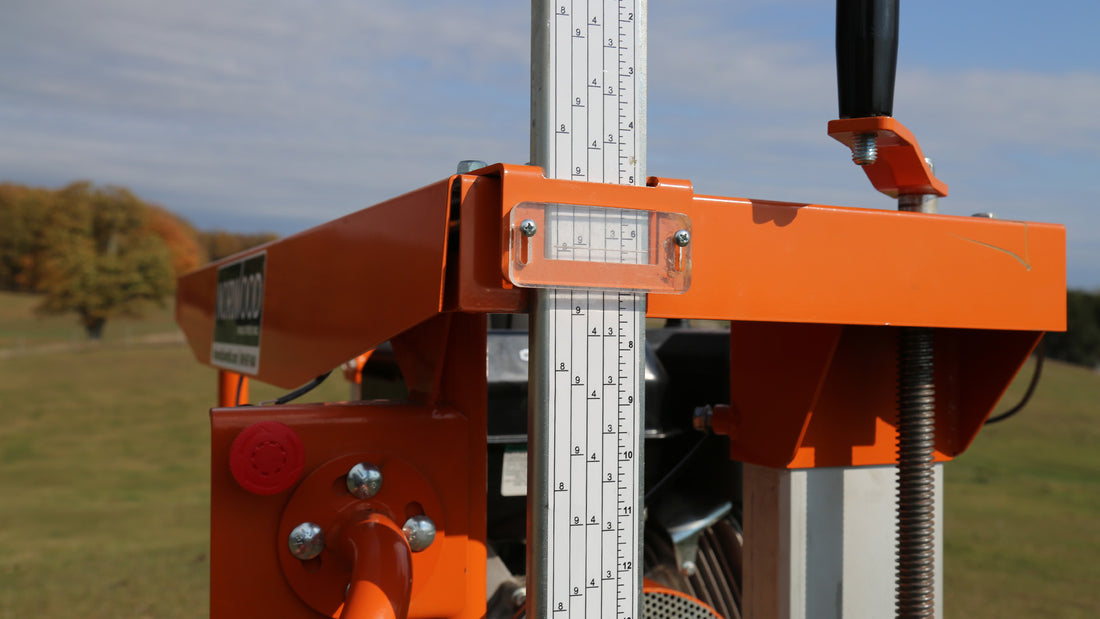

Depth of cut ruler scale

Exact vertical adjustments can be easily made with the adjusting handle and sight scales. The Log Moulder comes equipped standard with a 9/8", 2", 1", and ¾" lumber scale.

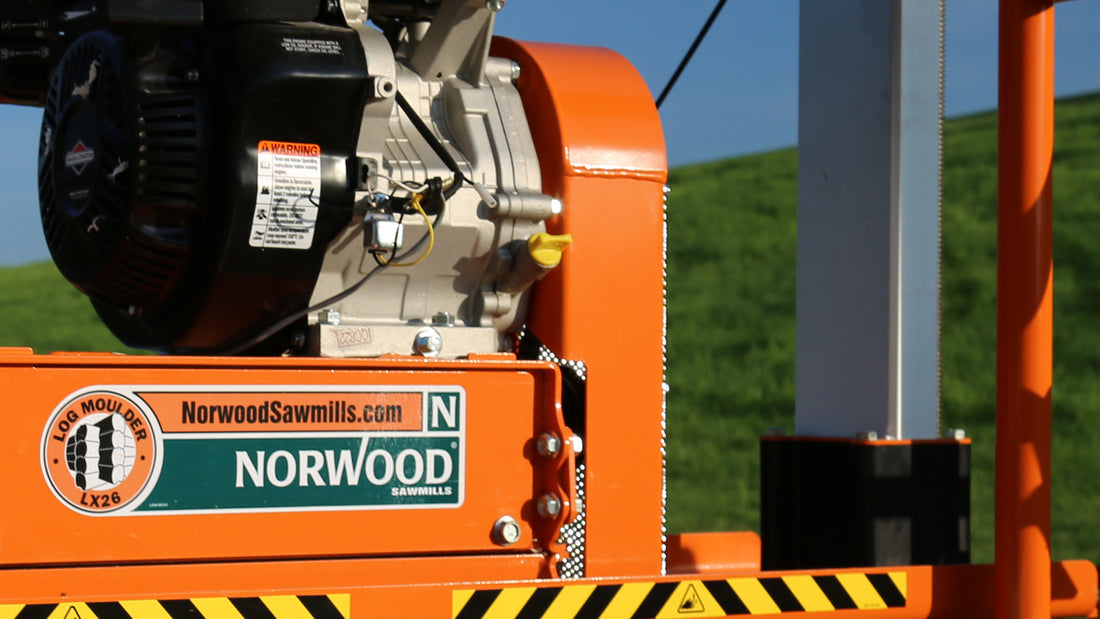

Smooth, low-shock belt drive

Belt-drive reduces chatter compared to direct drive. When a belt change is needed, the quick tensioning ring makes adjustment fast so you can get back to work with minimal downtime.

10.

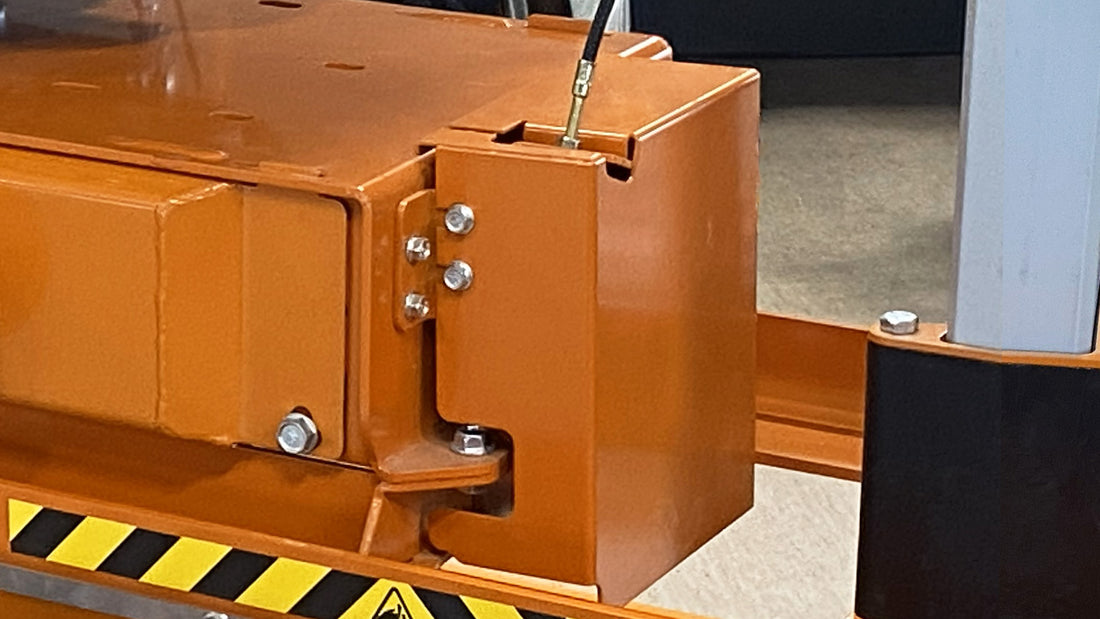

Drum brake system

The drum brake automatically engages when the throttle is released, bringing the cutterhead to a stop faster than coasting. This reduces run-down time after cutting and improves jobsite safety.

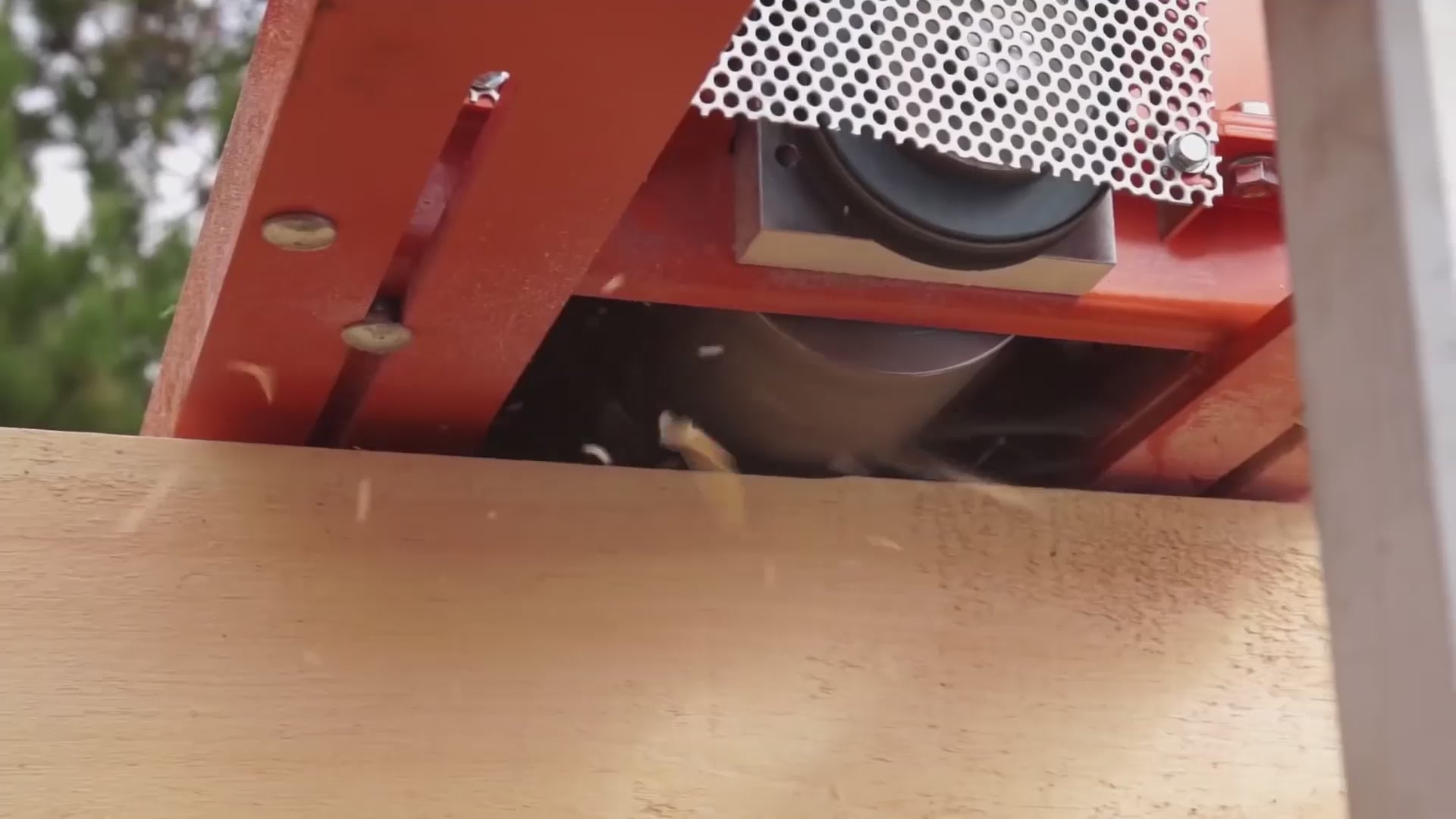

Turn rough timber into premium finished stock

Use the LX26 to surface beams, slabs, and timbers to spec, right on your sawmill rails. After you square the cant, the moulder runs the same track to plane clean, uniform faces with repeatable results. It’s a straightforward way to move into value-added material for timber framing, log building, and custom projects, without sending work out or tying up a separate machine.

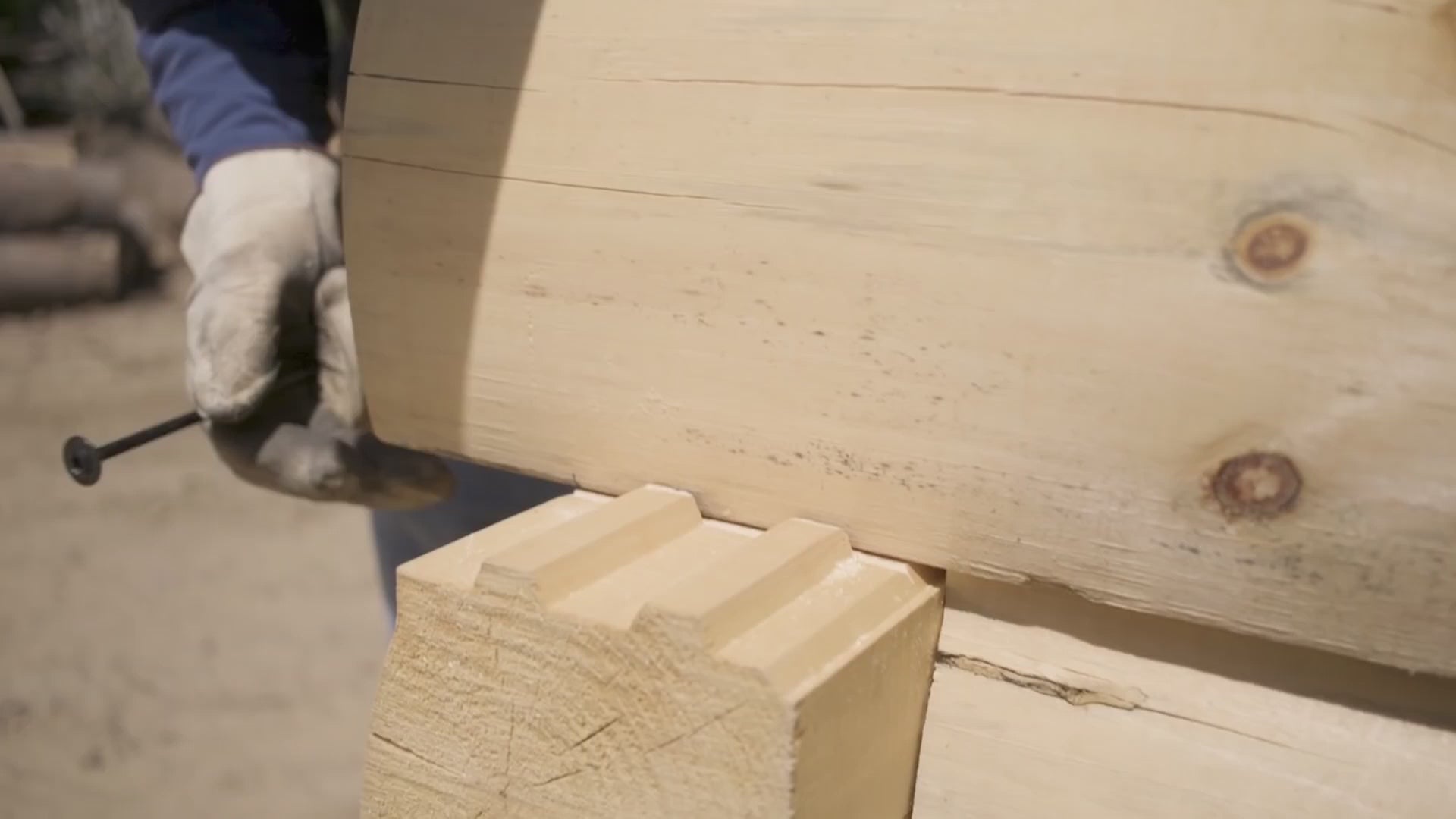

Build a log cabin, or a business

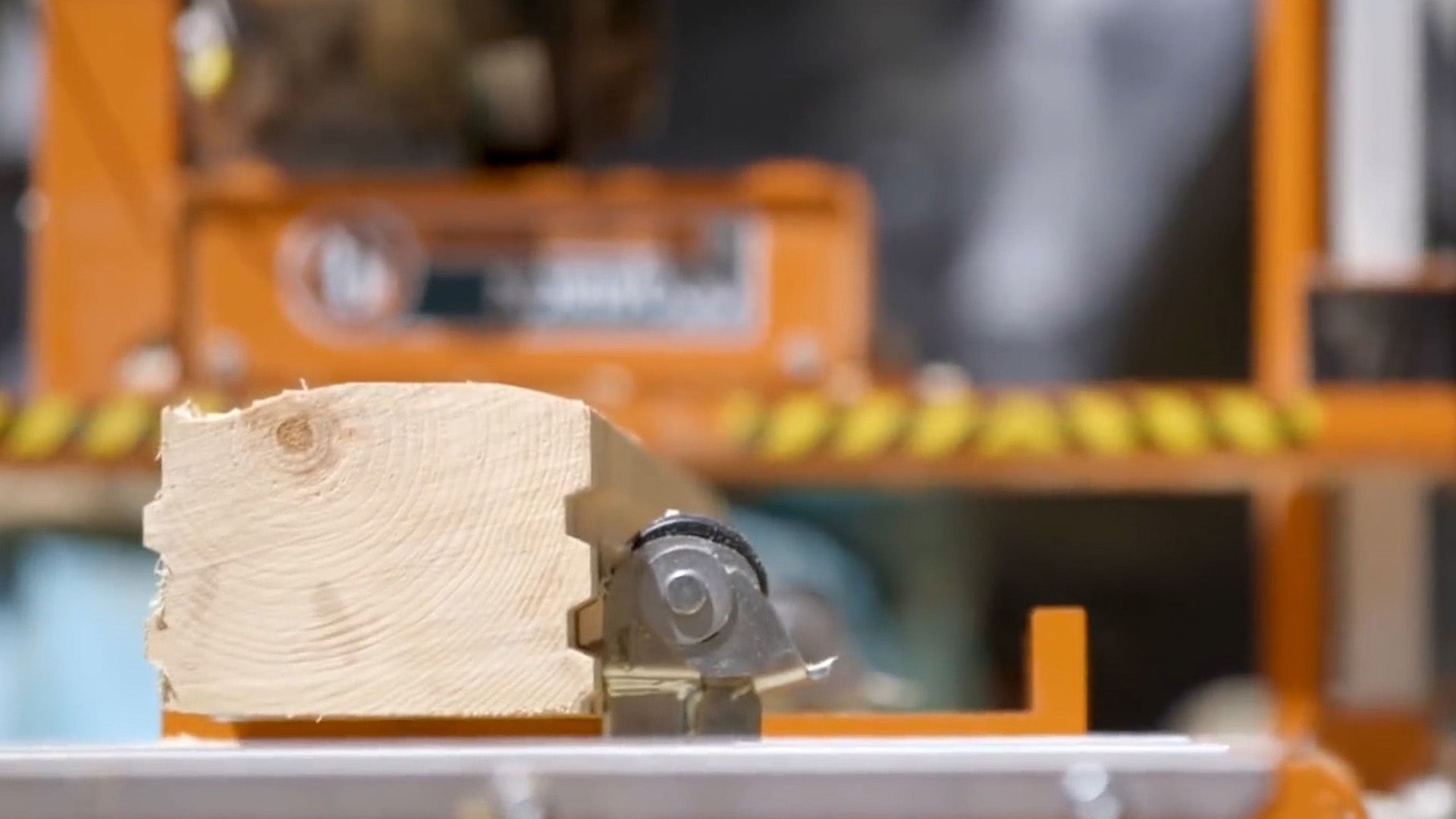

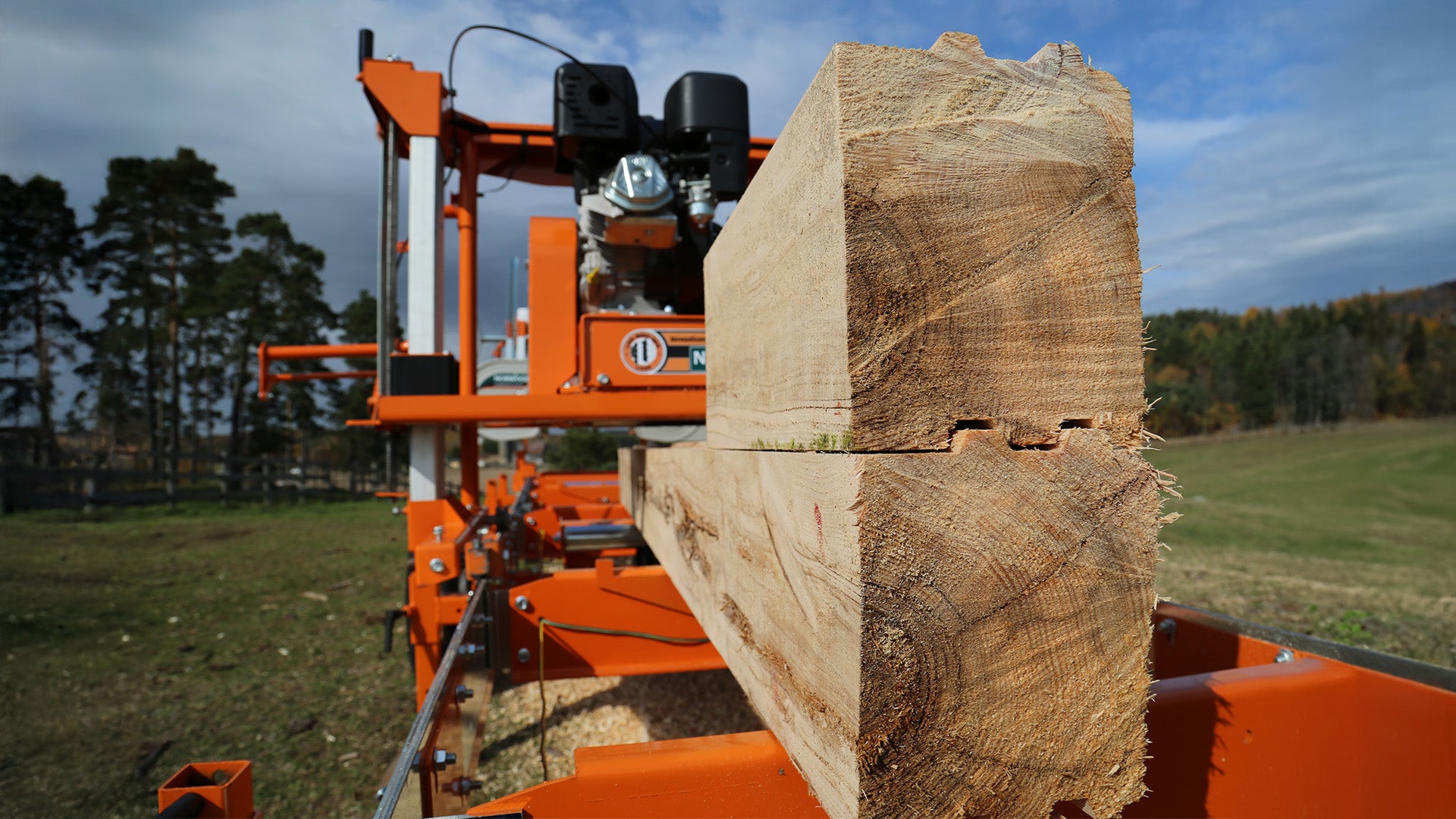

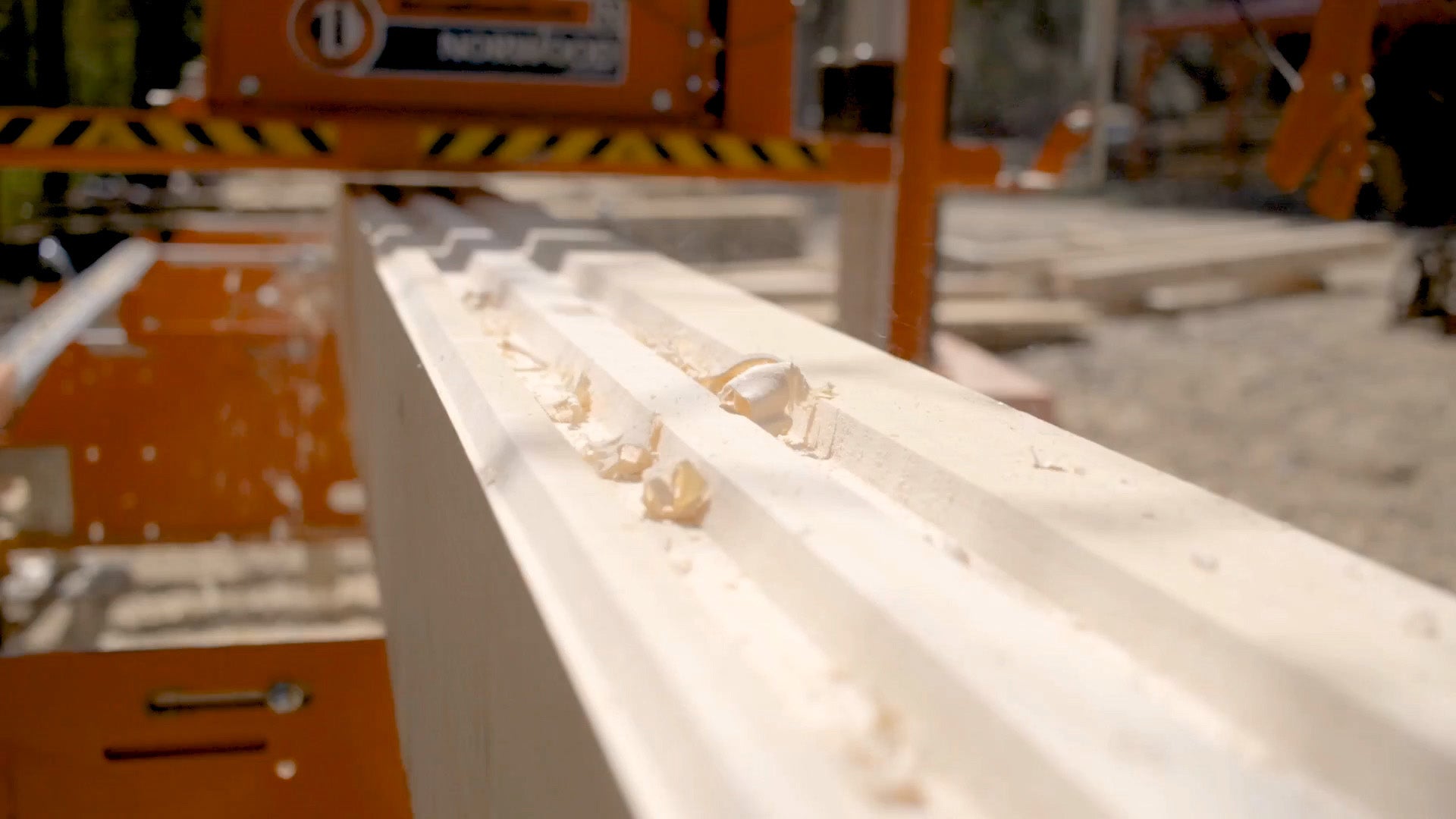

Build the log cabin or timber structure you’ve always wanted, using your own wood. The Log Moulder LX26 lets you produce precision-moulded profiles, including tongue-and-groove and Swedish Cope options, for consistent geometry and clean mating surfaces. The result is beautiful, build-ready timbers with a professional finished look that’s hard to match.

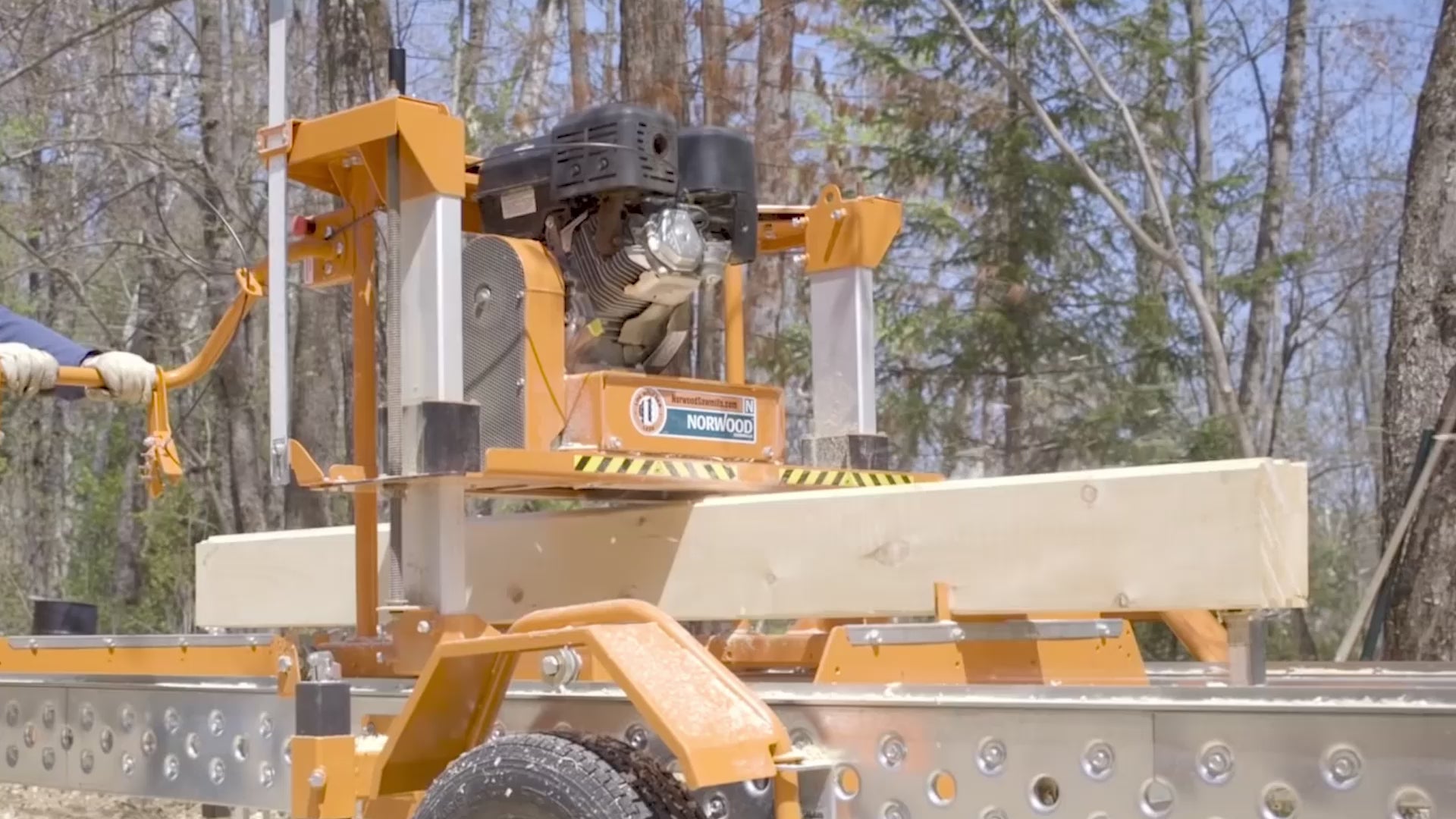

Fits the Norwood mill you already own

The LX26 adapts to fit on the tracks of a wide range of Norwood sawmills, including HD38, HD36V2, HD36, LM30, LM29, MN27, MX34, and ML26, plus the 2000 / MK3 / MK4 series. Adjustable carriage wheels accommodate rail widths of 31–33½ in and 40½–43 in (79–85 cm and 103–110 cm). That flexibility makes it a practical add-on for owners who want to expand capability while keeping their existing mill setup.
