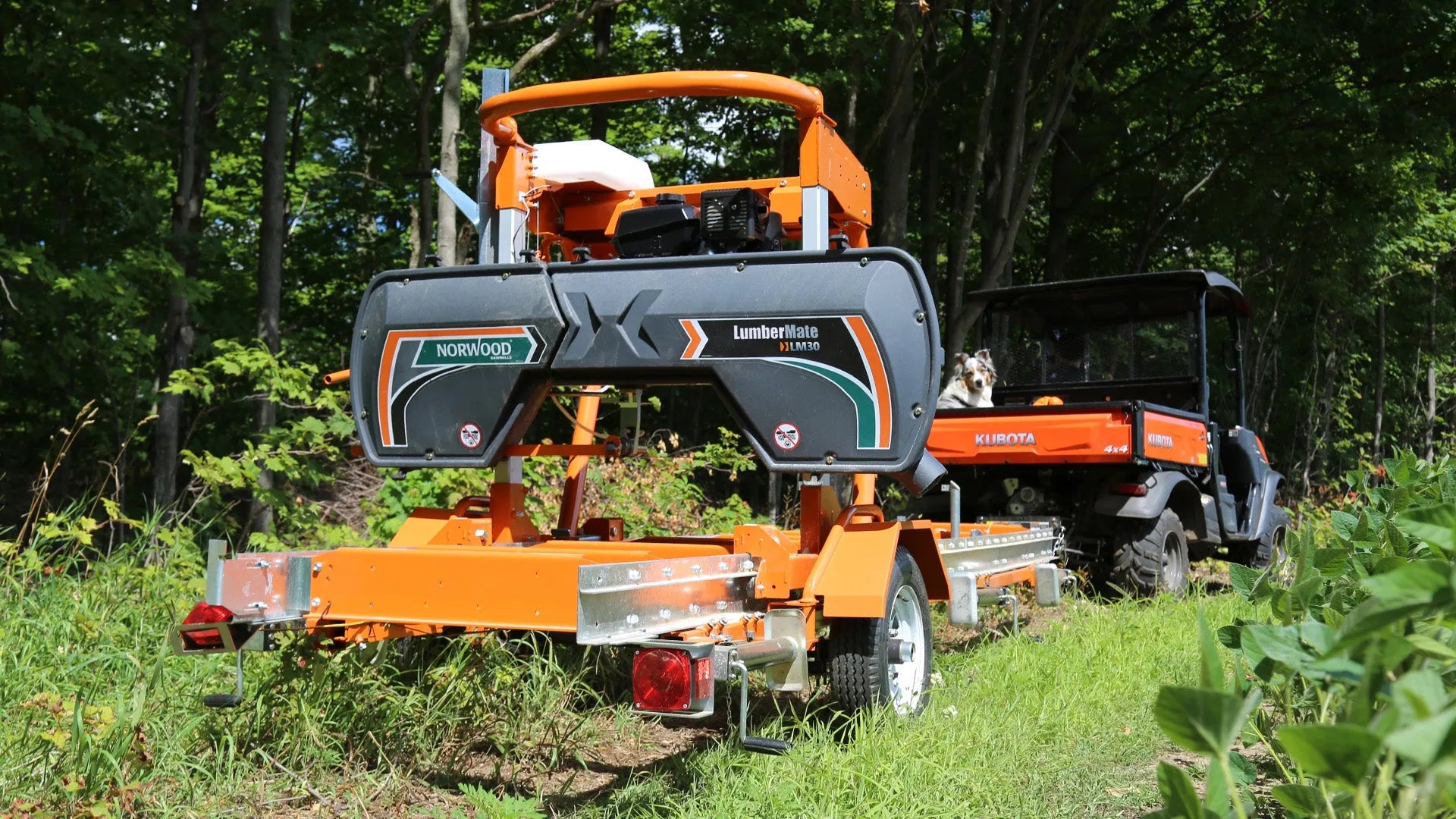

LumberMate LM30 — Feature Highlights

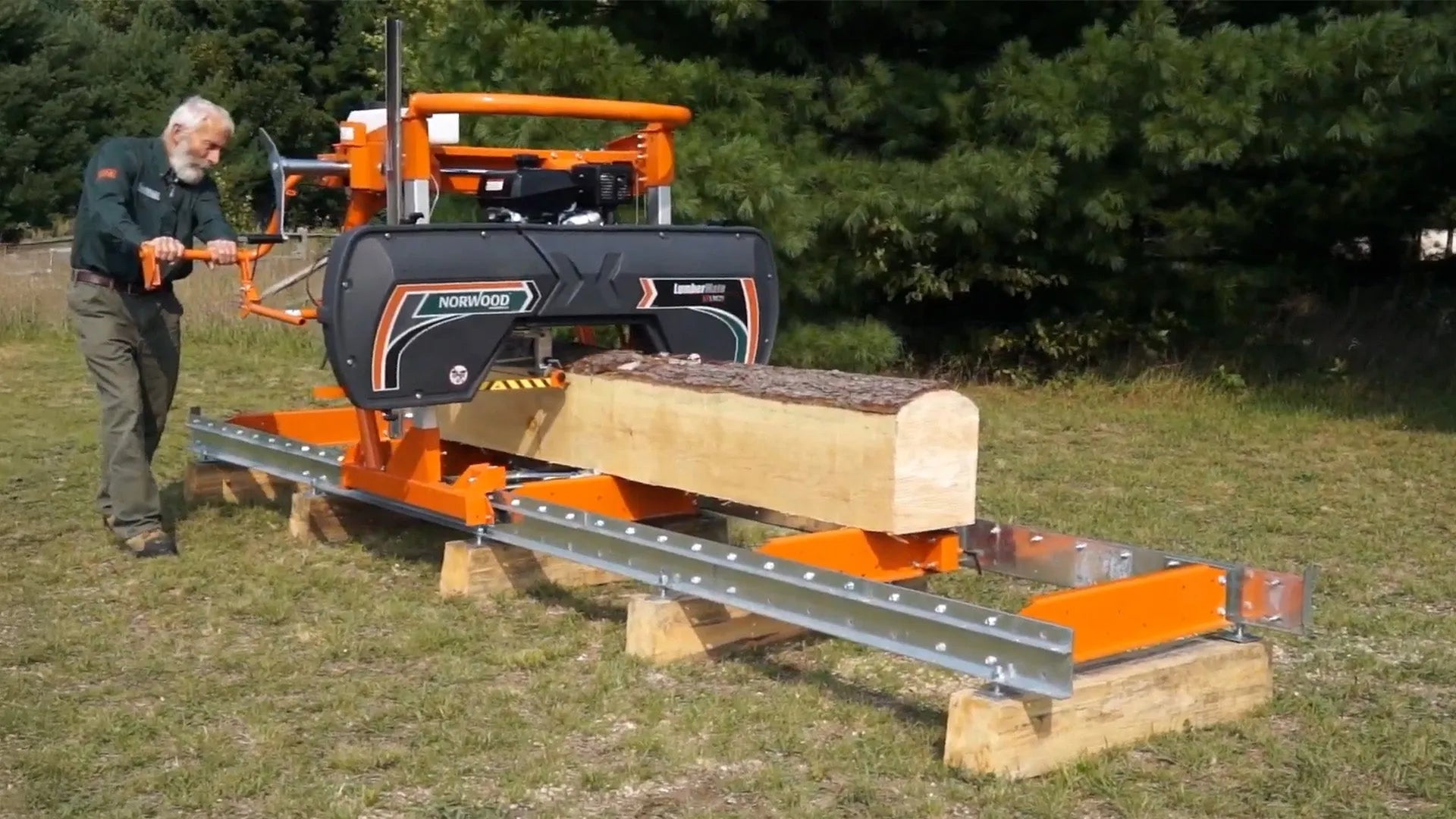

The LumberMate LM30 combines extreme capacity with Norwood’s most advanced innovations to deliver serious performance, cut after cut.

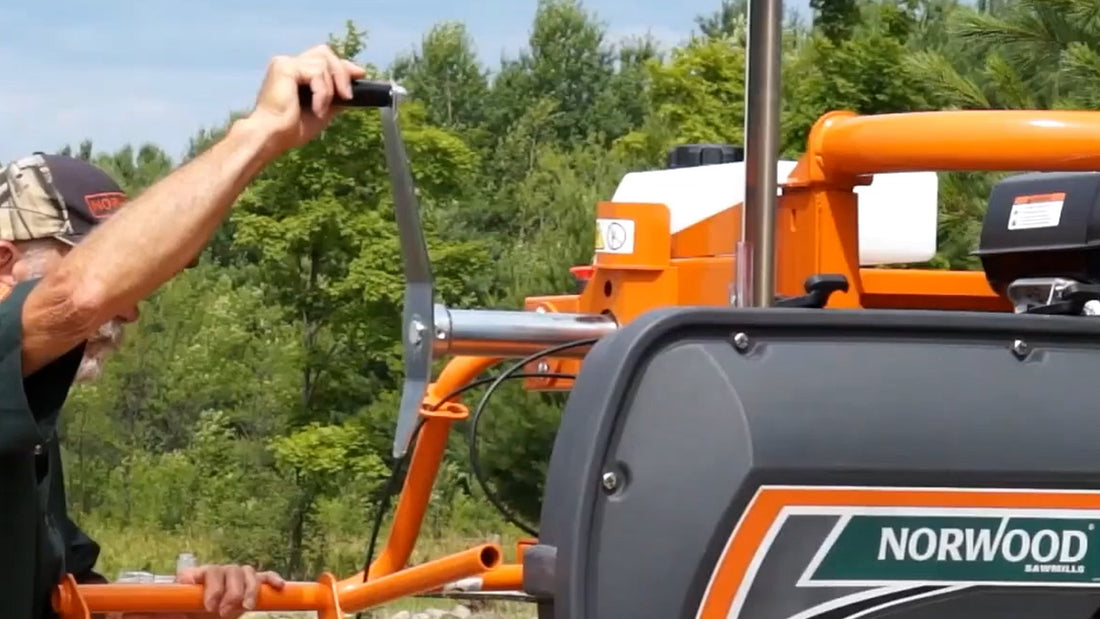

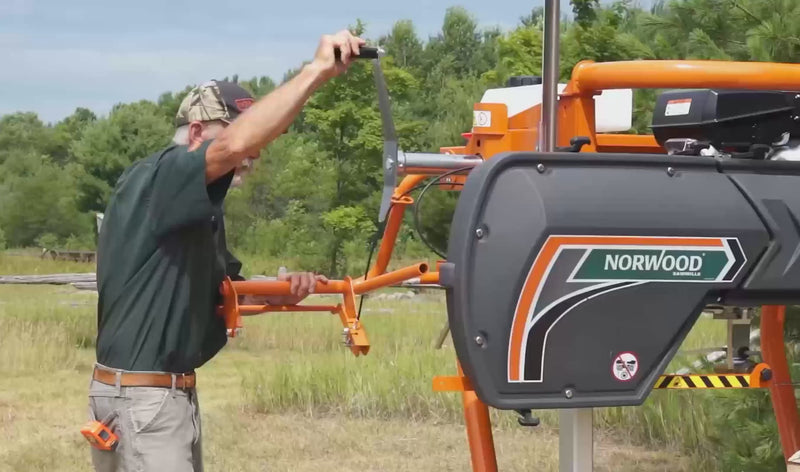

Infinitely adjustable patented auto-locking sawhead on the Norwood Sawmills LumberMate LM30 portable sawmill.
1.

Auto-locking sawhead

Patented infinitely-adjustable auto-locking sawhead (versus choice-choking, dimension-limiting pre-set cogged systems) gives you full depth-of-cut control while sparing you two time-consuming operations per cut.

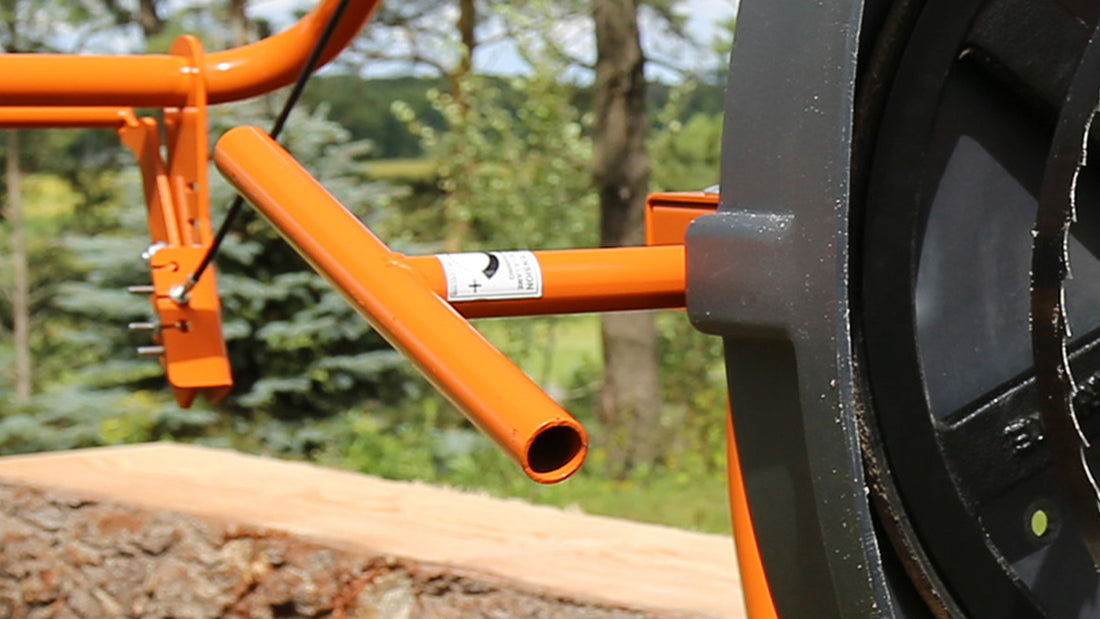

E-Z Blade tension
2.

E-Z Blade tension

Patented laminated sawhead with EZ blade tension system for fast, frustration-free blade changes and maximum torsional sawhead strength.

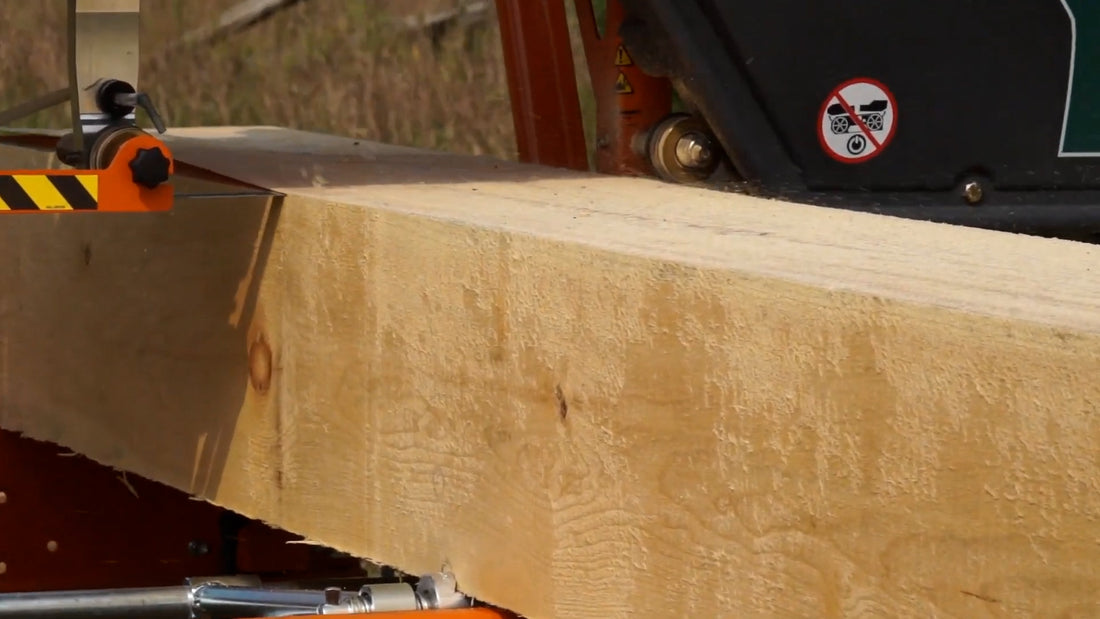

Roller blade guides
3.

Roller blade guides

Two 1 ¼" precision-machined, hardened and zinc-dichromate plated blade-guide rollers are fitted with sealed double ball bearings: one fixed, and one patented easy-adjust with quick-locking.

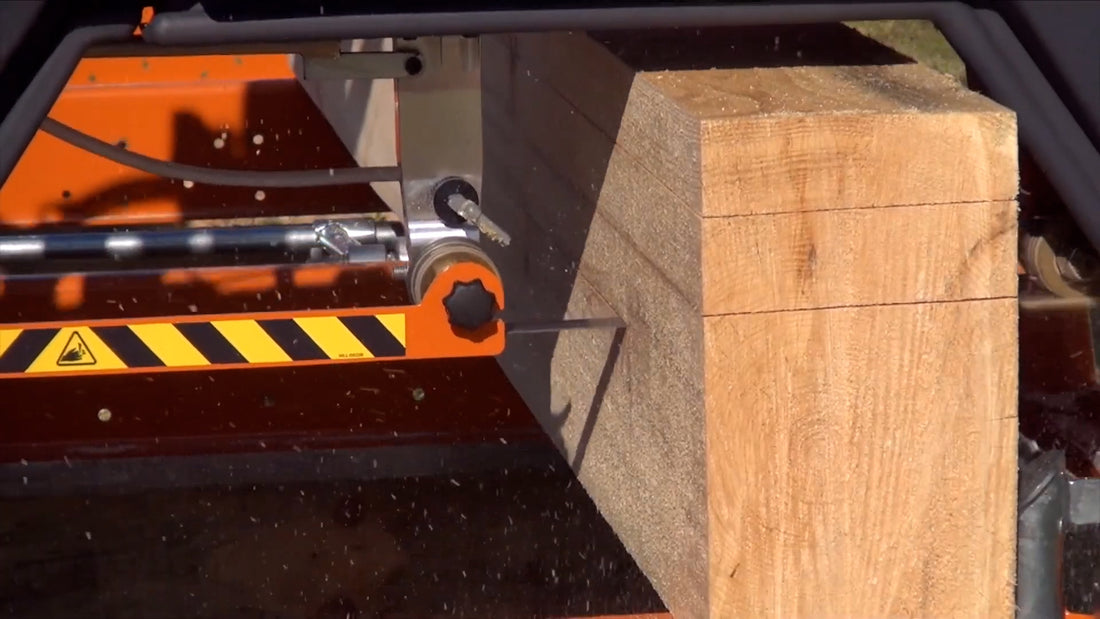

Adjustable blade guide
4.

Adjustable blade guide

Included standard is the patented easy-adjust quick-locking blade guide that closely supports the blade for accurate milling, simply lift slide and lock. For safety, the unused portion of the blade is shielded.

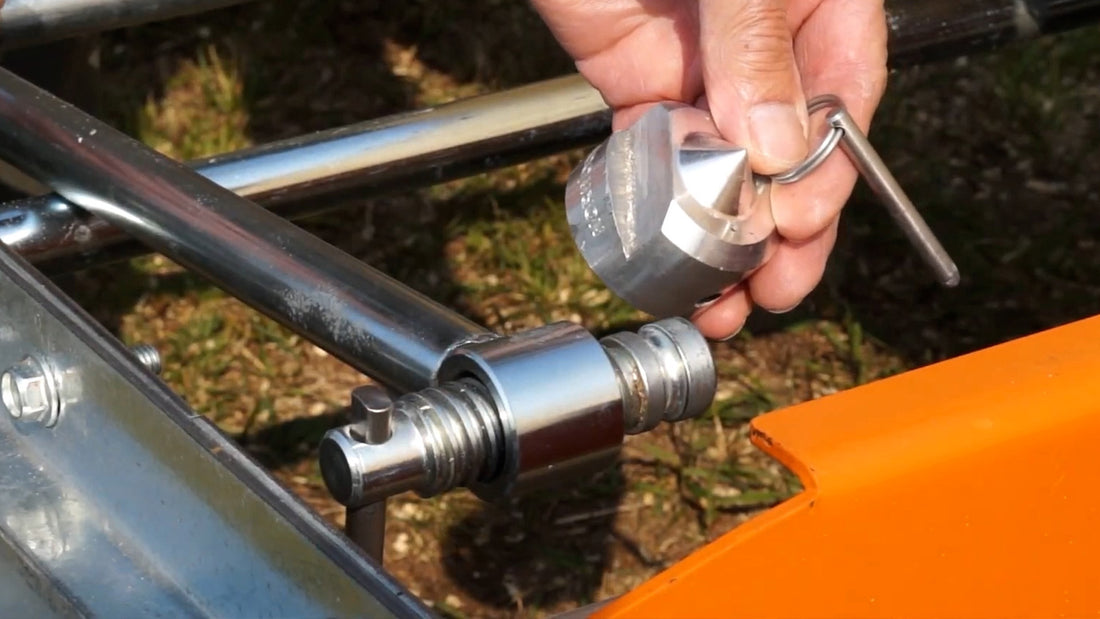

Log dog block
5.

Log dog block

Dual-profile log-clamp block with patented quick-disconnect functionality to expose third profile, a mar-reducing flat surface that helps protect your valuable sawn wood.

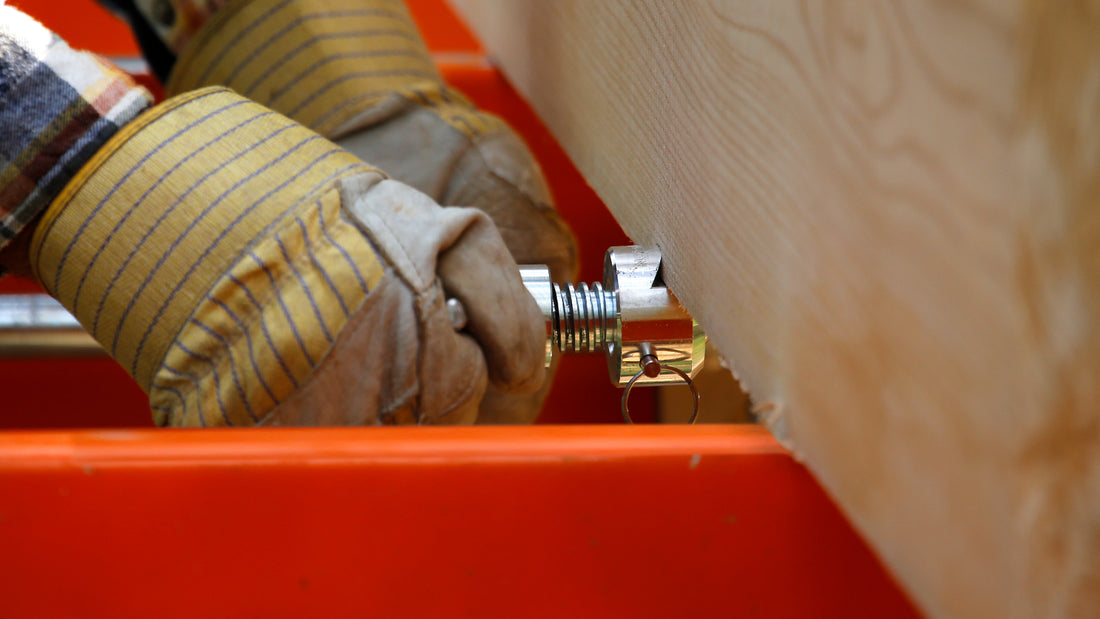

Log dog set bar
6.

Log dog set bar

Patented quick-set bar takes the guesswork out of clamping your cant low to make your last cut. In its engaged position, the set bar sets your log dog perfectly to firmly bite low and clear of the blade’s path.

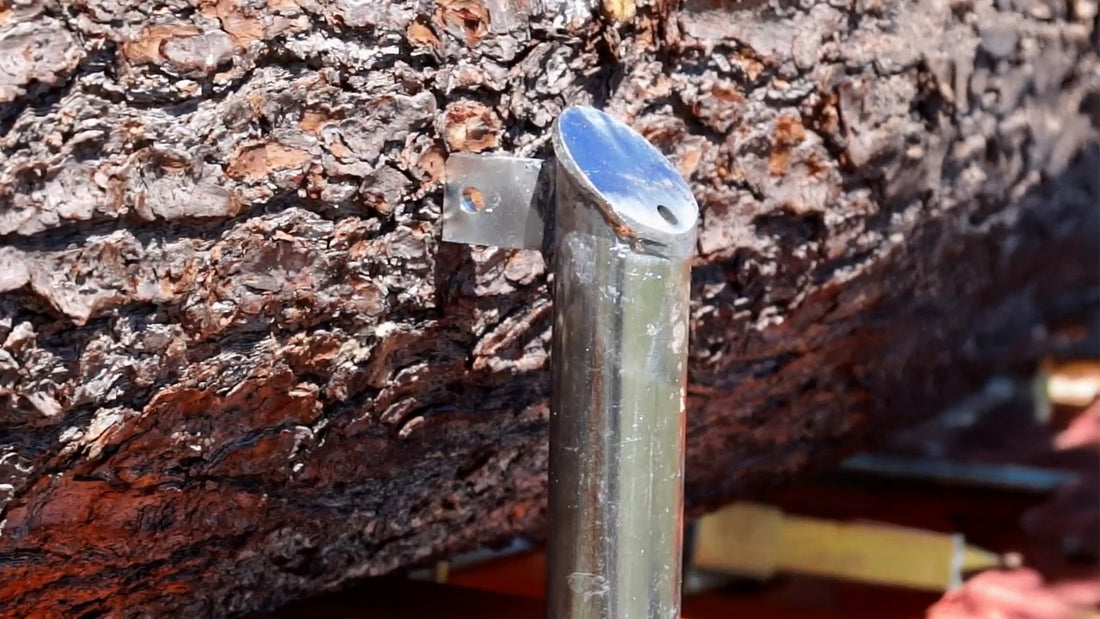

Versatile log rests
7.

Versatile log rests

Two vertical-adjust 3 function log rests act as standoffs for knots and irregular shaped logs, secondly they enable easy log rotation, and thirdly they act as a stop for cants and boards.

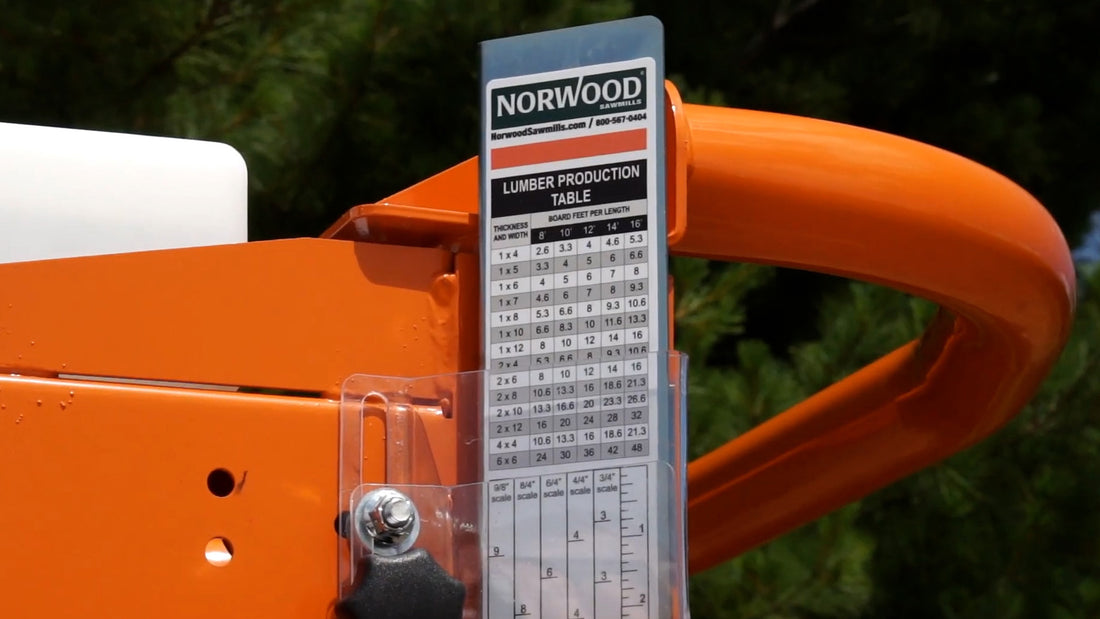

Lumber scale
8.

Lumber scale

Set display ruler with 9/8", 2", 1", 3/4" scales and built-in kerf allowance enables sawing standard size lumber with no calculations. A lumber production table is provided as a handy reference to improve lumber yield.

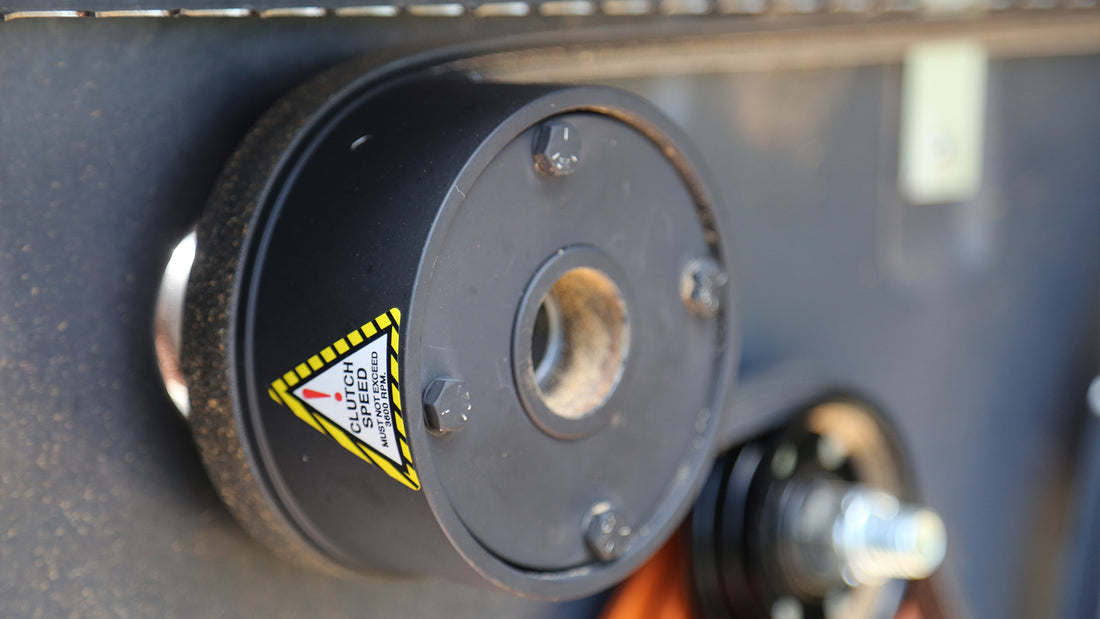

Heavy-duty centrifugal clutch
9.

Heavy-duty centrifugal clutch

Automatically engages the blade when you throttle up – simple, reliable, responsive.

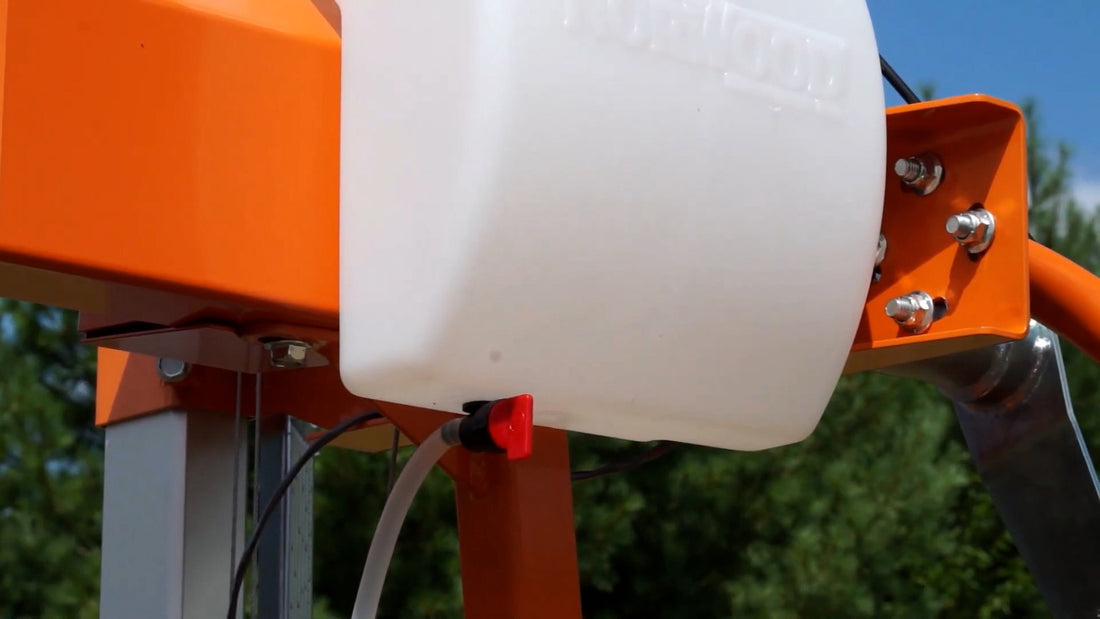

Blade Lube System
10.

Blade Lube System

Large custom-molded water tank with wide-mouth port and tethered cap is easy to refill. Water flow can be set to suit your preference. Add the optional blade auto-lube system to have water automatically flow to the blade when you activate the operator control and stops when you release it

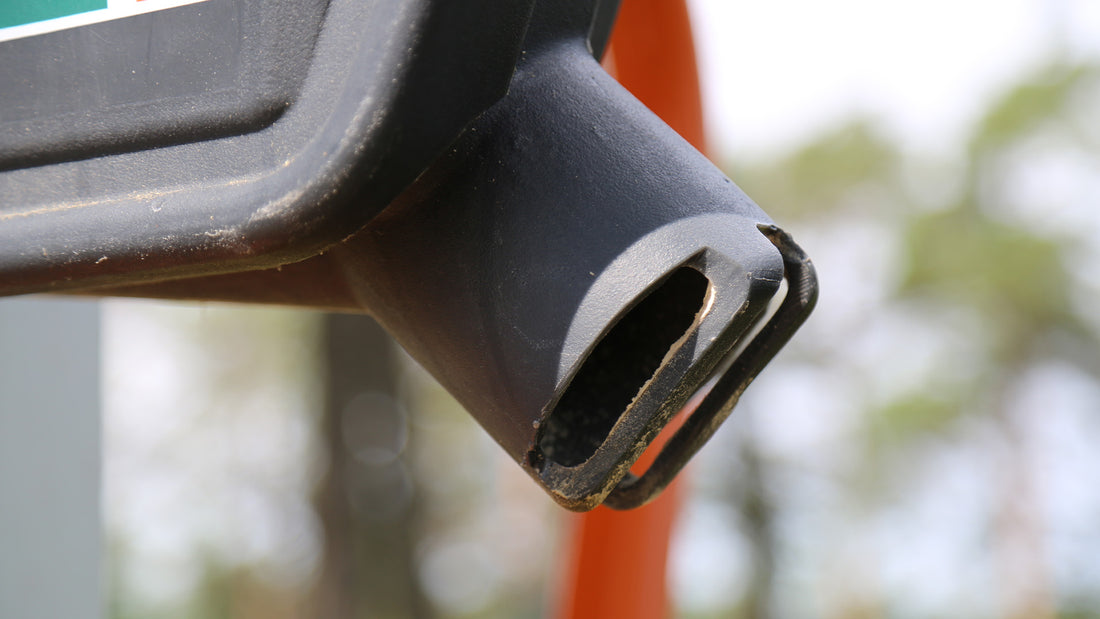

4 inch sawdust exhaust port on the Norwood Sawmills LumberMate LM30 and LumberMan MN27 portable sawmill.
11.

Sawdust port

Rigid 4" tubular port directs sawdust down towards the ground. Or use it to connect a chip-extractor and exhaust the sawdust outside your sawing shed.

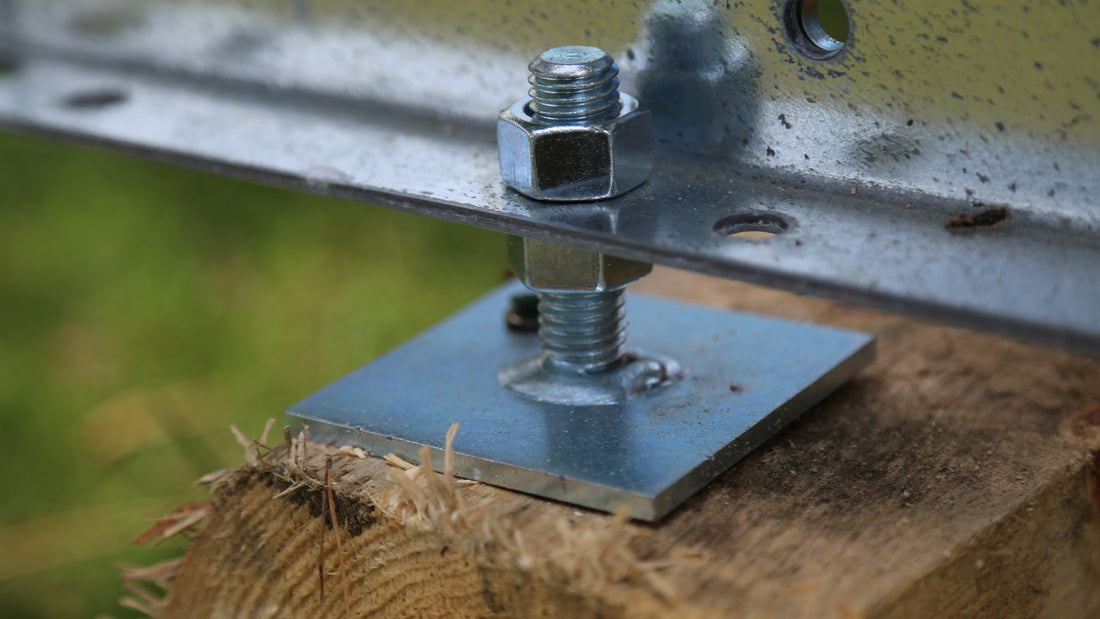

Leveling feet
12.

Leveling feet

Ten micro-adjust leveling feet for ground-level stationary sawing come standard.

Load video: Enjoy sawmilling with patented Sawyer-Assist® technologies | Feature

Enjoy sawmilling with patented Sawyer-Assist® technologies

The LumberMate LM30 features industry-leading Sawyer-Assist® technology, so you can process your timber with confidence. Patented features include infinitely-variable auto-locking sawhead, EZ-blade tension for frustration-free blade changes, and available auto-blade lube. With Sawyer-Assist, nothing can match a Norwood.

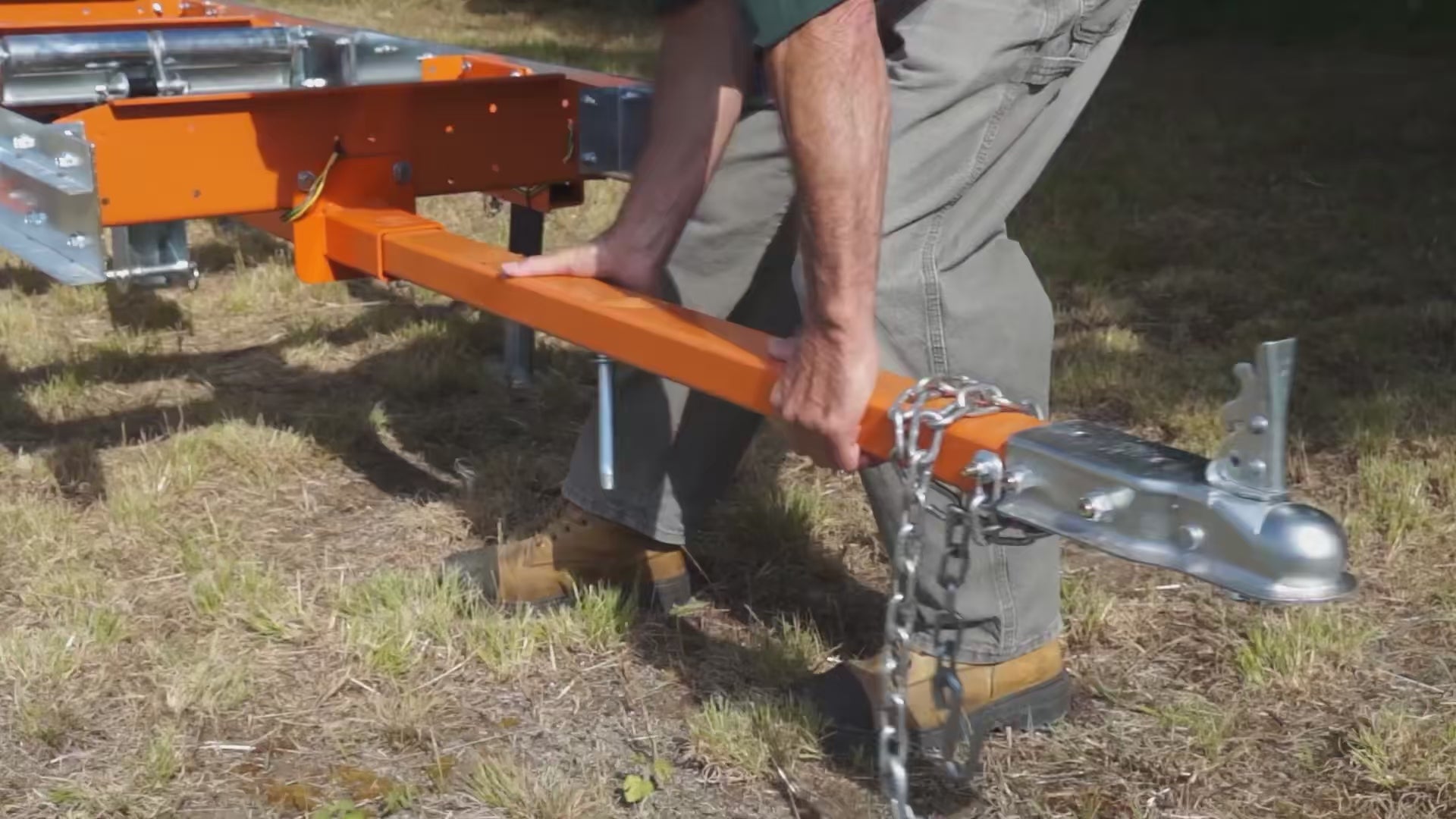

Load video: Customize your mill, your way | Feature

Customize your mill, your way

With multiple customization options, build the perfect mill for your sawmilling adventure. Amp-up your LM30 anytime - Add a mobility kit for easy towing, log-loading ramps and winch system, and track extensions now, or down the road.

Load video: All the small details that enable an amazing sawmilling experience | Feature

All the small details that enable an amazing sawmilling experience

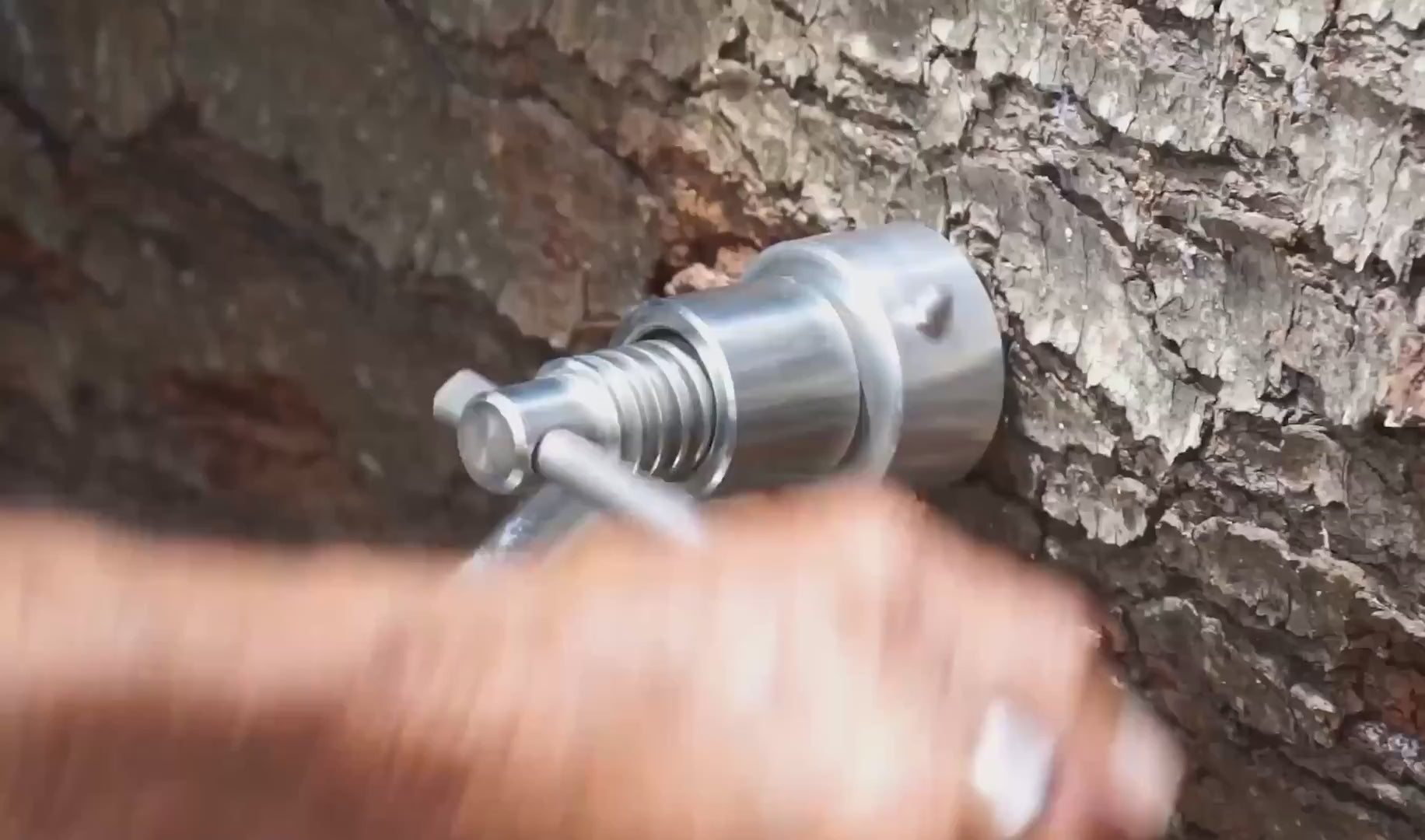

On a long day of milling, it’s the small details that keep things running smoothly. The LumberMate LM30 includes smart features that support efficient, accurate milling. Twin vertical-adjust log clamps with 3-function clamping pads help secure sawlogs, cants, and boards. Height-adjustable steel log rests support the cant and help you keep it square. A patented quick-set set bar helps you clamp a cant low and clear of the blade’s path, so you can make your last cut with confidence.

Compare Sawmills

Compare features, capacity, and options to find your best fit.

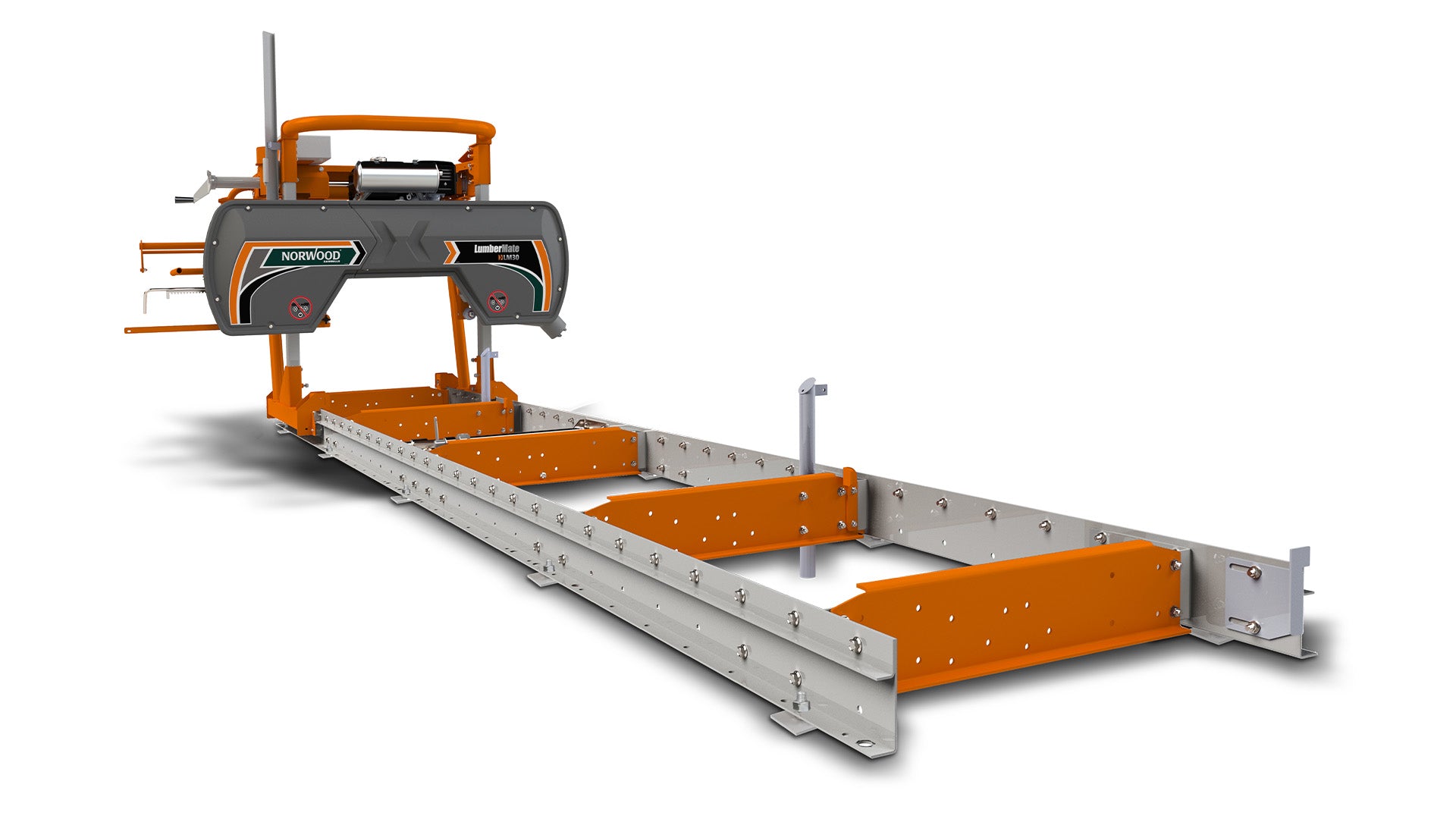

LumberMate LM30

Current Product
Max log diameter

38" (97 cm)

Max log diameter

36" (92 cm)

Max log diameter

30" (76 cm)

Max log diameter

27" (69 cm)

Max width of cut

35" (89 cm)

Max width of cut

31" (79 cm)

Max width of cut

25" (64 cm)

Max width of cut

23" (59 cm)

Max board width (from cant)

32" (81 cm)

Max board width (from cant)

30" (76 cm)

Max board width (from cant)

24" (61 cm)

Max board width (from cant)

23" (59 cm)

Max depth of cut

14" (36 cm)

Max depth of cut

9 3/8" (24.1 cm)

Max depth of cut

8" (20.3 cm)

Max depth of cut

8" (20.3 cm)

Max log length (without extensions)

13' (4 m)

Max log length (standard before optional extensions)

13' (4 m)

Max log length (standard before optional extensions)

12' 9" (3.8 m)

Max log length (standard before optional extensions)

12' 9" (3.8 m)

Track extensions
  • 4' (1.2m)
  • 2' (0.6m) removable
Track extensions
  • 4' (1.2 m)
  • 2' (0.6 m) removable
Track extensions
  • 4' (1.2 m)
Track extensions
  • 4' (1.2 m)
Blade length

167" (4240 mm)

Blade length

167" (4240 mm)

Blade length

144" (3660 mm)

Blade length

144" (3660 mm)

Bandwheels

19" x 5/8" (47.5 x 1.5 cm)

Bandwheels

20 ¼" x 7/8" (50.6 x 2.2 cm)

Bandwheels

19" x 5/8" (47.5 x 1.5 cm)

Bandwheels

19" x 5/8" (47.5 x 1.5 cm)

Hydraulics capable

Yes

Hydraulics capable

Yes

Hydraulics capable

No

Hydraulics capable

No

Log deck length (standard before optional extensions)

16' (4.8 m)

Log deck length (standard before optional extensions)

16' (4.8 m)

Log deck length (standard before optional extensions)

16' (4.8 m)

Log deck length (standard before optional extensions)

16' (4.8 m)

Width (at widest point on sawhead)

6' 11" (2.1 m)

Width (at widest point on sawhead)

6' 7" (2 m)

Width (at widest point on sawhead)

6' 6" (2 m)

Width (at widest point on sawhead)

6' 6" (2 m)

Power options
  • 27 hp (800 cc) Honda V-Twin EFI electric start gas engine
  • 23 hp (627 cc) Briggs V-Twin Vanguard OHV electric-start engine
Power options
  • 10 hp electric motor (7.5kW, 230V, 1Ph, 60Hz)
  • 15 hp electric motor (11kW, 230/460V, 3Ph, 60Hz)
  • 18 hp (570 cc) Briggs V-Twin Vanguard OHV electric-start engine
  • 23 hp (627 cc) Briggs V-Twin Vanguard OHV electric-start engine
Power options
  • 13½ hp (420 cc) Briggs & Stratton electric-start gas engine
  • 14 hp (429 cc) Kohler OHV recoil-start engine
  • 13 hp (390 cc) Honda GXSeries OHV recoil-start engine
  • 18 hp (570 cc) Briggs V-Twin Vanguard OHV electric-start engine
Power options
  • 13½ hp (420 cc) Briggs & Stratton recoil-start gas engine
